TECMENTec III
Auto Darken Welding Helmet
  • 1 of 8
    Tec III
  • 2 of 8

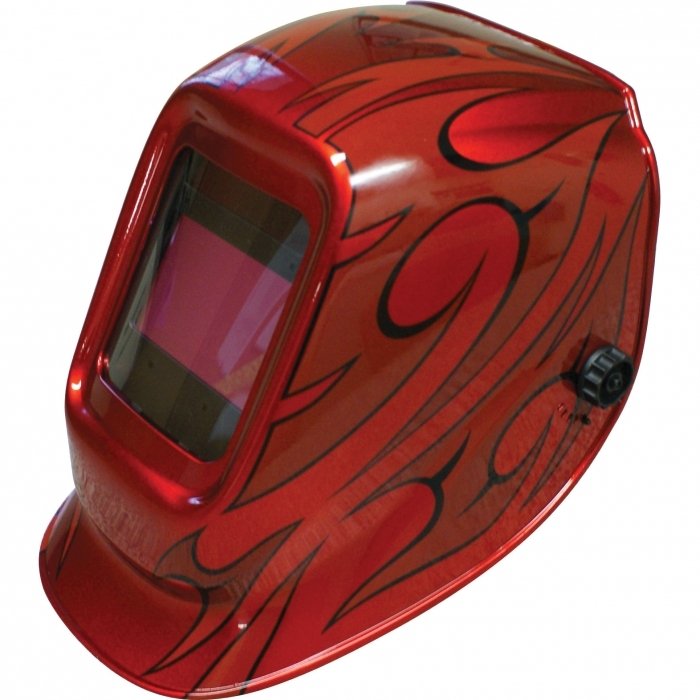

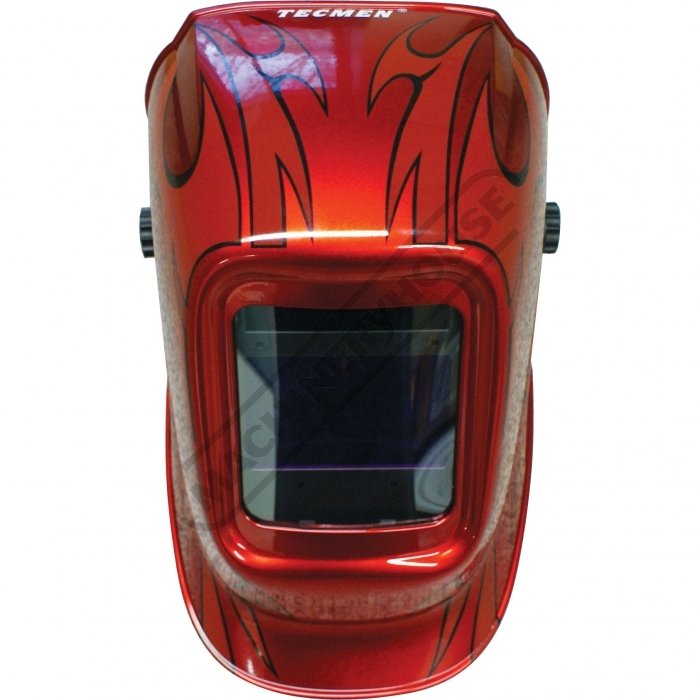

    Front View
  • 3 of 8

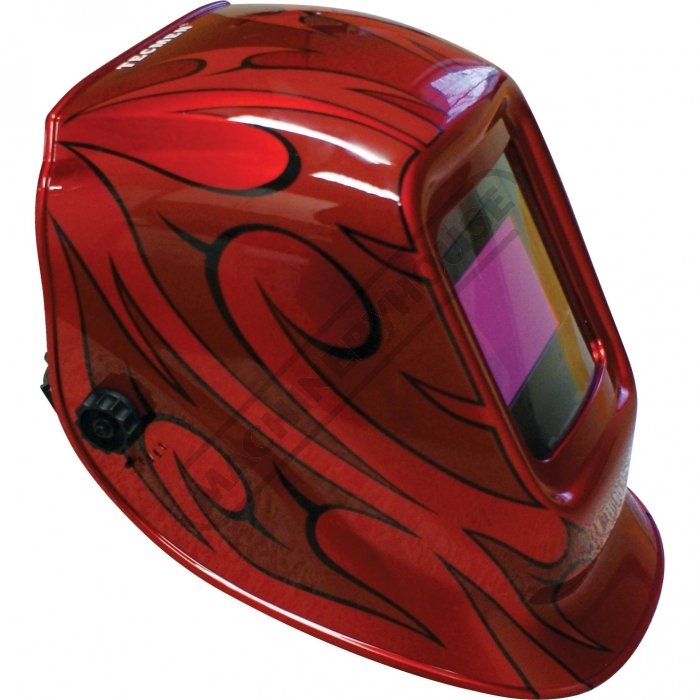

    Left View
  • 4 of 8

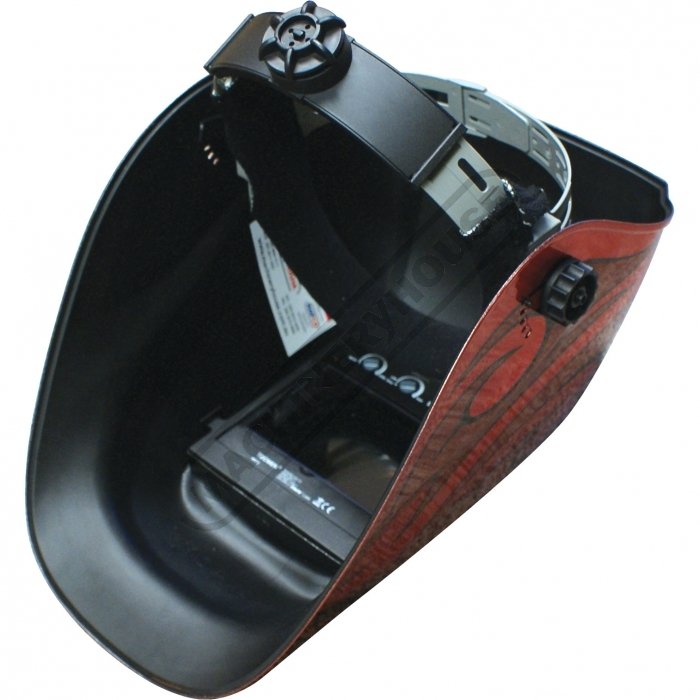

    Rear View
  • 5 of 8

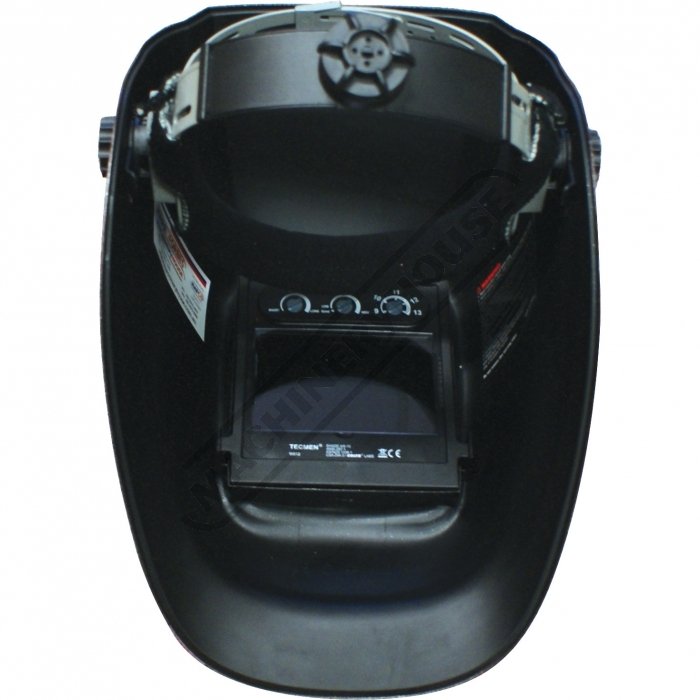

    Back View
  • 6 of 8

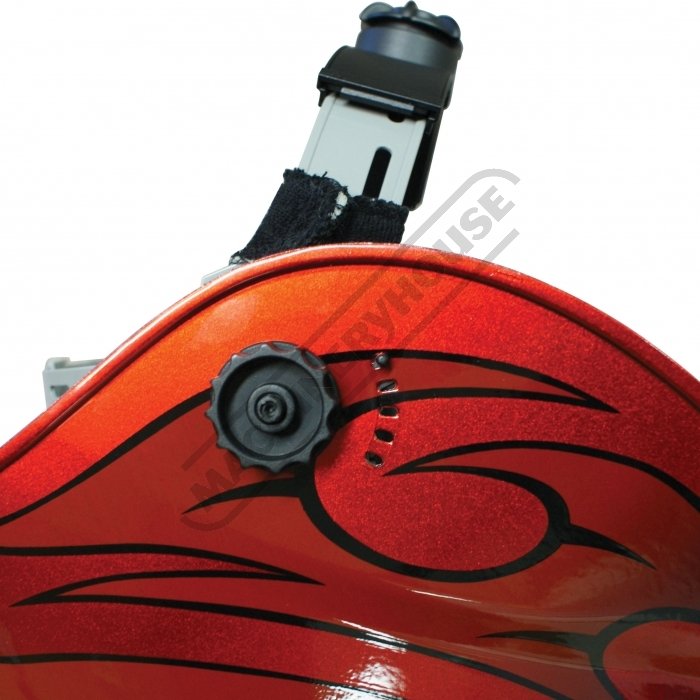

    Adjustable Headband
  • 7 of 8

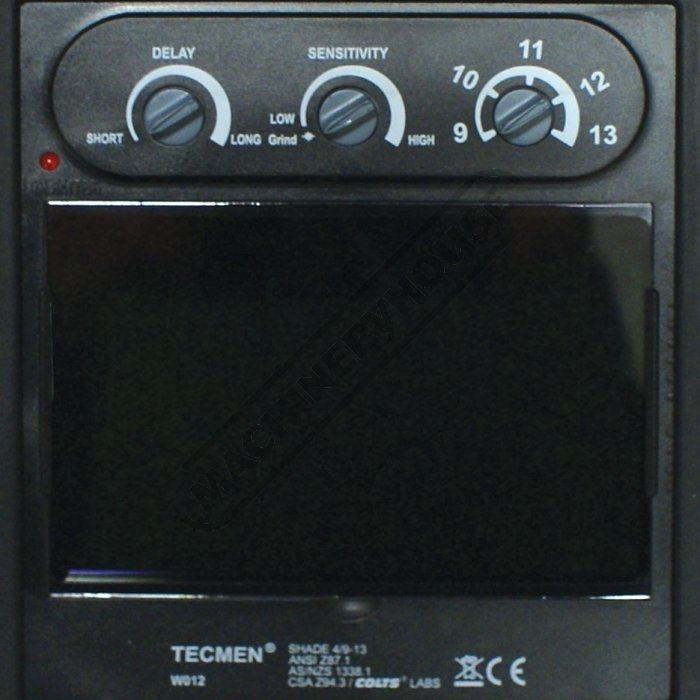

    Shade, Sensitivity with Ginding Function & Delay Dials
  • 8 of 8

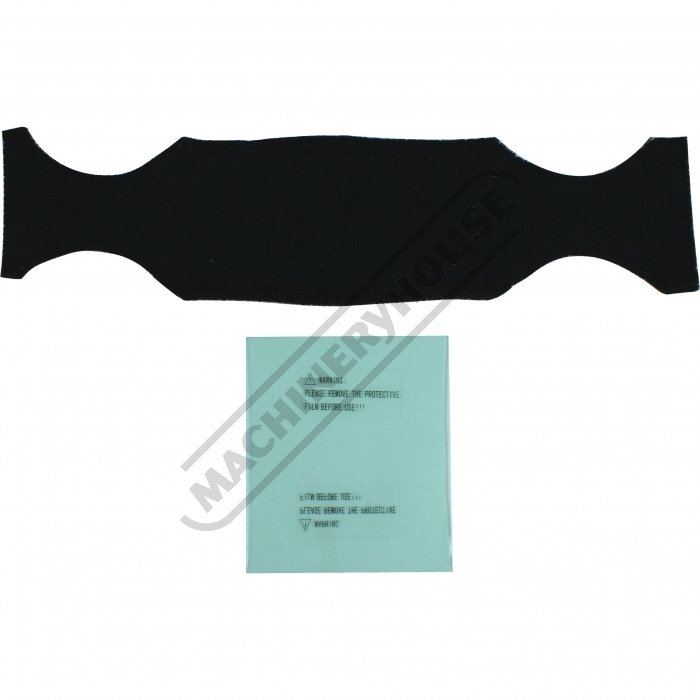

    Additional Lens Cover & Sweatband
Tec III
Auto Darken Welding Helmet
9-13 Shade
TECMEN
CODE
W012
Model
Tec III
Viewing Area
97 x 62mm
Cartridge Size
133 x 114 x 9mm
Arc Sensors
4
Light State
DIN 3.5
Shade
DIN 9 ~ 13
Shade Control
Internal, Variable Shade
Power On/off
Fully Automatic
Sensitivity Control
Adjustable Dial Knob
Uv/ir Protection
UpDIN 16
Power Supply
Solar Cell, Battery Change

Required (2 x CR2450

lithium batteries)
Switching Time Light To Dark
1/25,000 Second
Delay Time Dark To Light
0.1-1.0s via Dial
Tig Rated Minimum
2 Amps
Grinding Function
Operating Temperature
-10ºC ~ 55ºC
Storing Temperature
-20ºC ~ 70ºC
Helmet Material
High Impact

Resistance Nylon
Total Weight
590g
Application Range
Mig, Tig, Plasma,

Arc Welding, Grinding
Standard
AS/NZS 1338.1.1992
Features
  • Suitable for MIG,TIG, Plasma, Arc welders & Grinding
  • Adjustable shade from 9 to 13
  • Viewing area 97 x 62mm
  • Darkens in 1/25,000 second
  • Solar powered with 4 arc sensors (inc. 2 x CR2450 lithium batteries)
  • Adjustable sensitivity dial with grinding function
  • Adjustable delay time dial
  • Protects from UV and IR radiation
  • Light weight high impact resistance nylon
  • Includes 1 x additional lens cover & sweatband
  • AS/NZS 1338.1.1992
Product Brochure

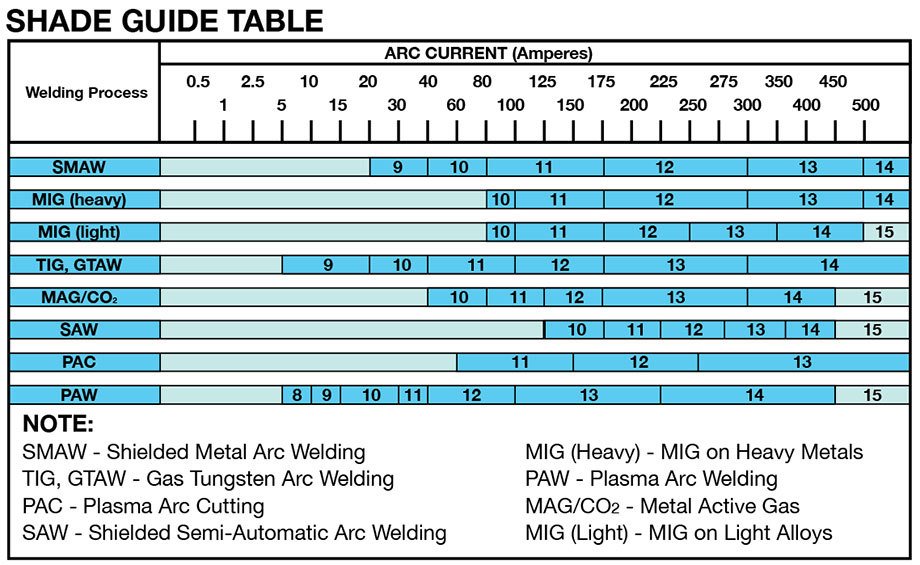

Shade Guide Table
68.09 KB
