TECMENTec II

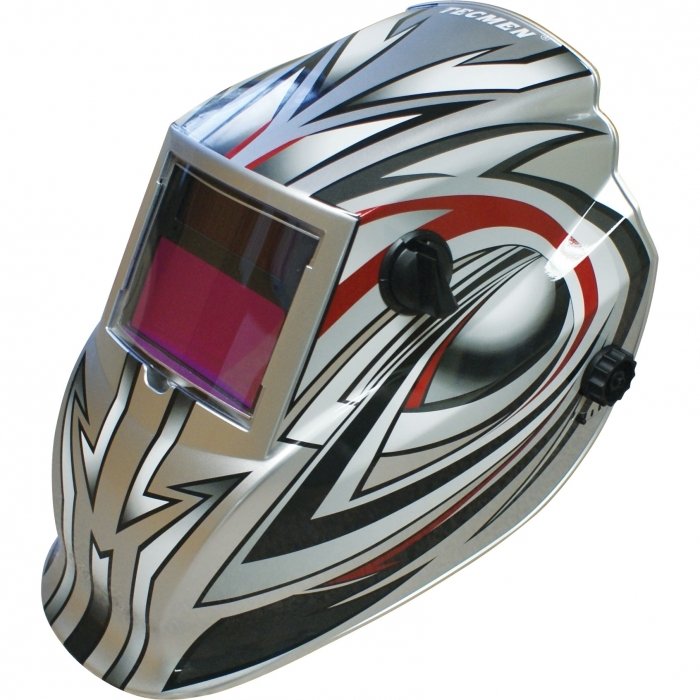

Auto Darken Welding Helmet
  • 1 of 9
    Tec II
  • 2 of 9

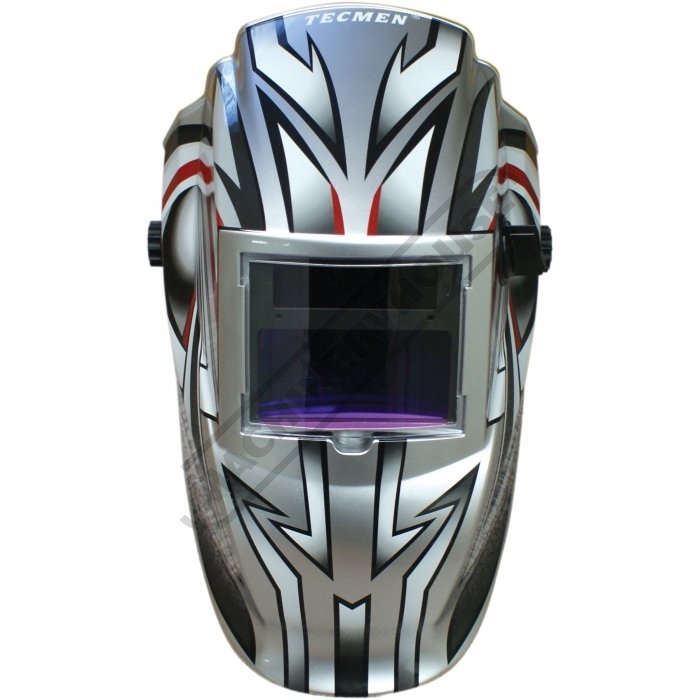

    Front View
  • 3 of 9

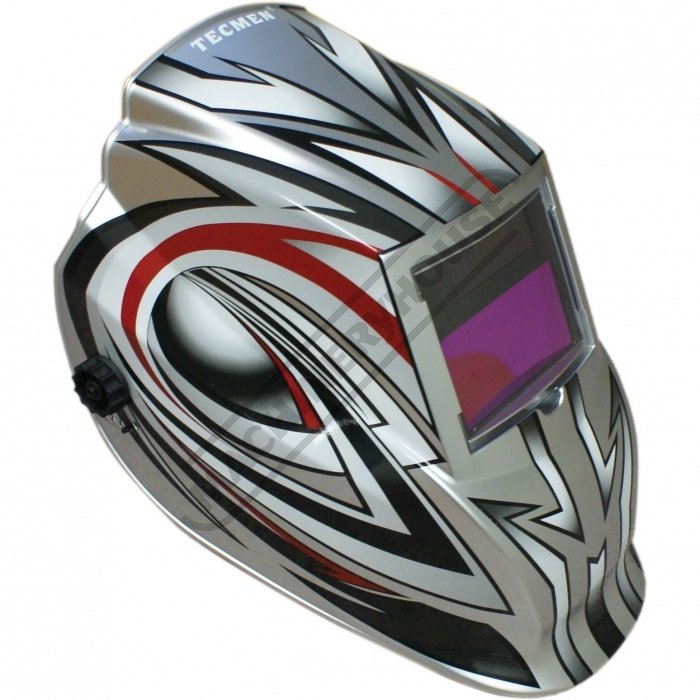

    Left View
  • 4 of 9

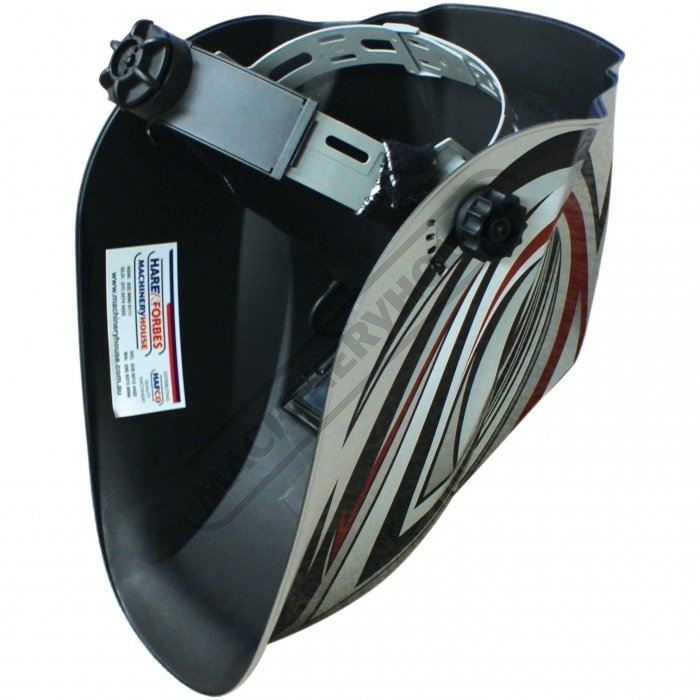

    Head Band Adjustment
  • 5 of 9

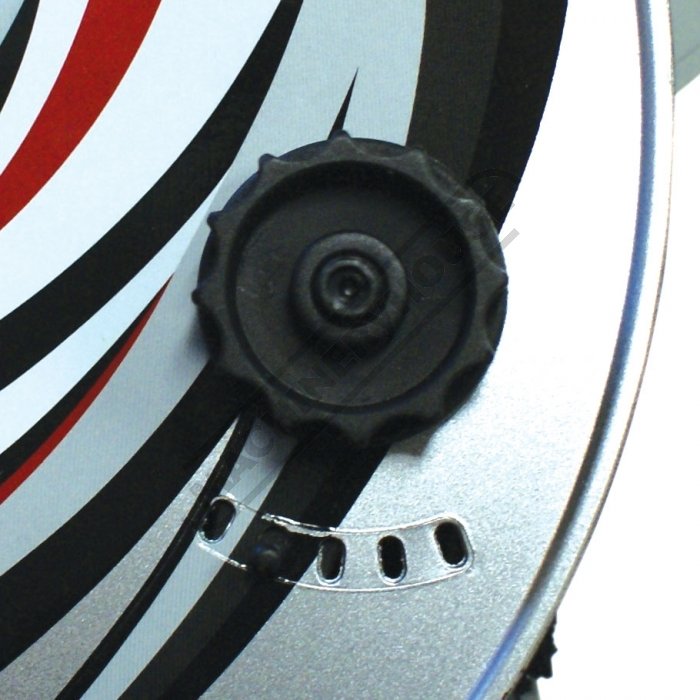

    Head Adjustment Setting
  • 6 of 9

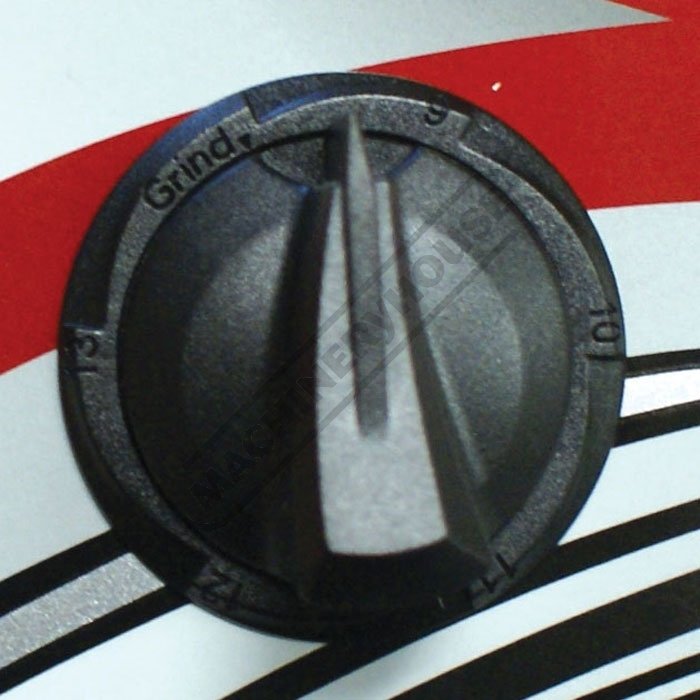

    Adjustable Shade Dial with Grinding Function
  • 7 of 9

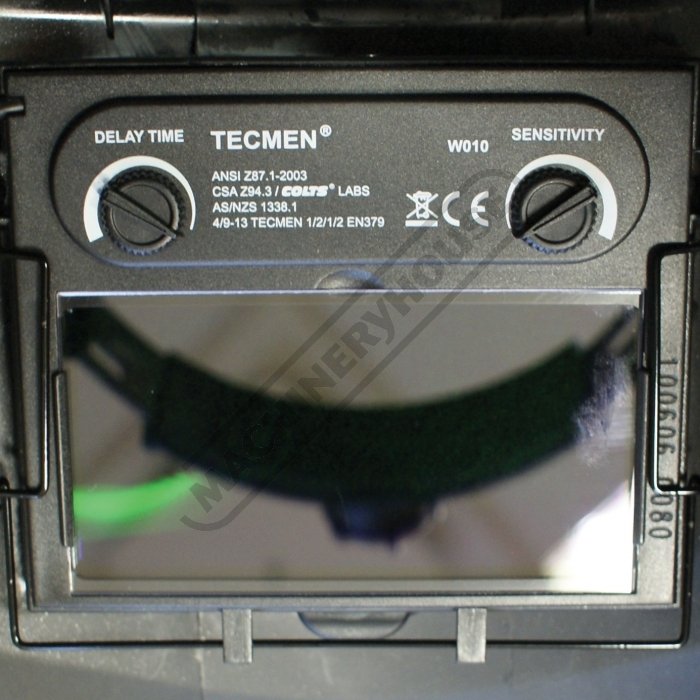

    Sensitivity & Delay Dials
  • 8 of 9

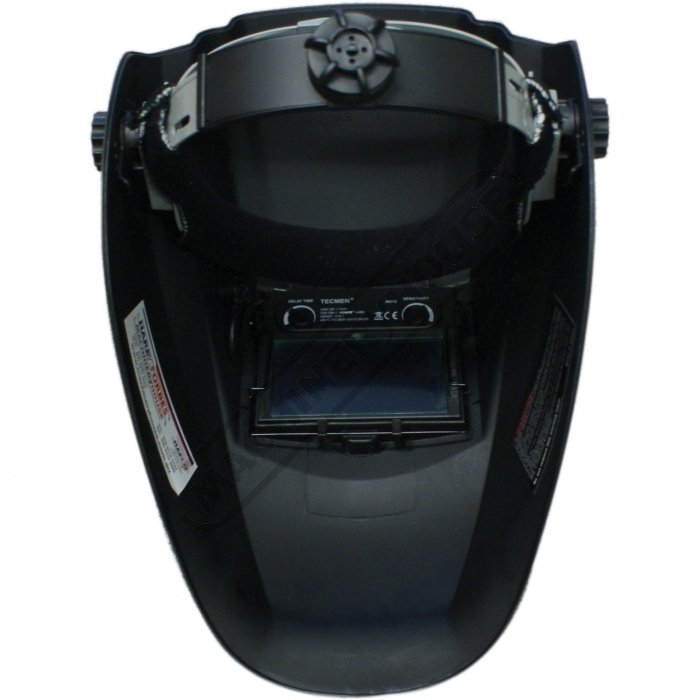

    Rear View
  • 9 of 9

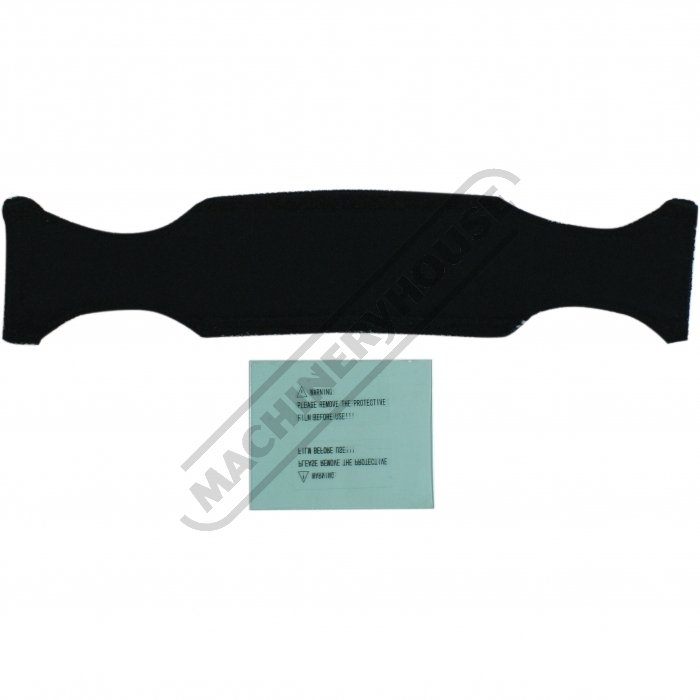

    Iincludes additional Lens Cover & Sweatband
Tec II
Auto Darken Welding Helmet
9-13 Shade
TECMEN
CODE
W010
Model
Tec II
Viewing Area
95 x 47mm
Cartridge Size
110 x 90 x 9mm
Arc Sensors
2
Light State
DIN 3.5
Shade
DIN 9 ~ 13
Shade Control
Power On/off
Fully Automatic
Sensitivity Control
Adjustable Dial Knob
Uv/ir Protection
UpDIN 16
Power Supply
Solar Cell, No Battery

Change Required
Switching Time Light To Dark
1/25,000 Second
Delay Time Dark To Light
0.1-1.0s via Dial
Tig Rated Minimum
5 Amps
Grinding Function
Operating Temperature
-10ºC ~ 55ºC
Storing Temperature
-20ºC ~ 70ºC
Helmet Material
High Impact

Resistance Nylon
Total Weight
430g
Application Range
Mig, Tig, Plasma,

Arc Welding, Grinding
Standard
AS/NZS 1338.1.1992
Features
  • Suitable for MIG,TIG, Plasma, Arc welders & Grinding
  • Adjustable shade from 9 to 13 with grinding function
  • Viewing area 95 x 47mm
  • Darkens in 1/25,000 second
  • Solar powered with 2 arc sensors, no batteries change required
  • Adjustable sensitivity dial
  • Adjustable delay time dial
  • Protects from UV and IR radiation
  • Light weight high impact resistance nylon
  • Includes 1 x additional lens cover & sweatband
  • AS/NZS 1338.1.1992
Product Brochure

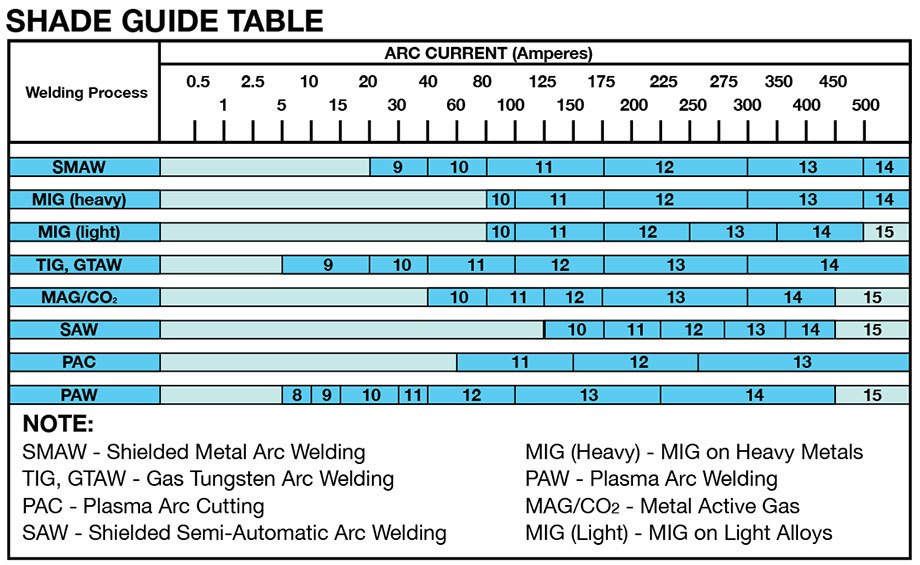

Shade Guide Table
68.09 KB
