Compact Power Machine Vice - VCV-160V-L
160 x 400mm
V360
1 of 1
Discontinued
Order Code: V360
1 Year Warranty
Made in Taiwan
Description
Compact Power Machine Vice - VCV-160V-L
160 x 400mm
Overview
Long Series precision machine vice with modular jaws. Replaceable jaws allow for special purpose holding of components.
Other sizes available...
Other sizes available...
Features
- Maximum opening capacity while compact in overall length

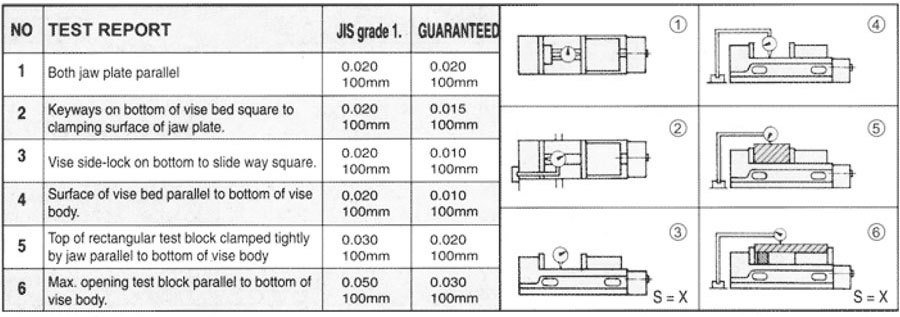

- Toleranced all over for use with other vices as matched pairs
- Rigid material- Ductile Iron FCD60 JIS. Equal to GGG60. 80,000 psi tensile strength
- Vice bed flame hardened to HRC 45
- Chip cover to protect leadscrew
- Jaws hardened to HRC 55
Compare Product Range

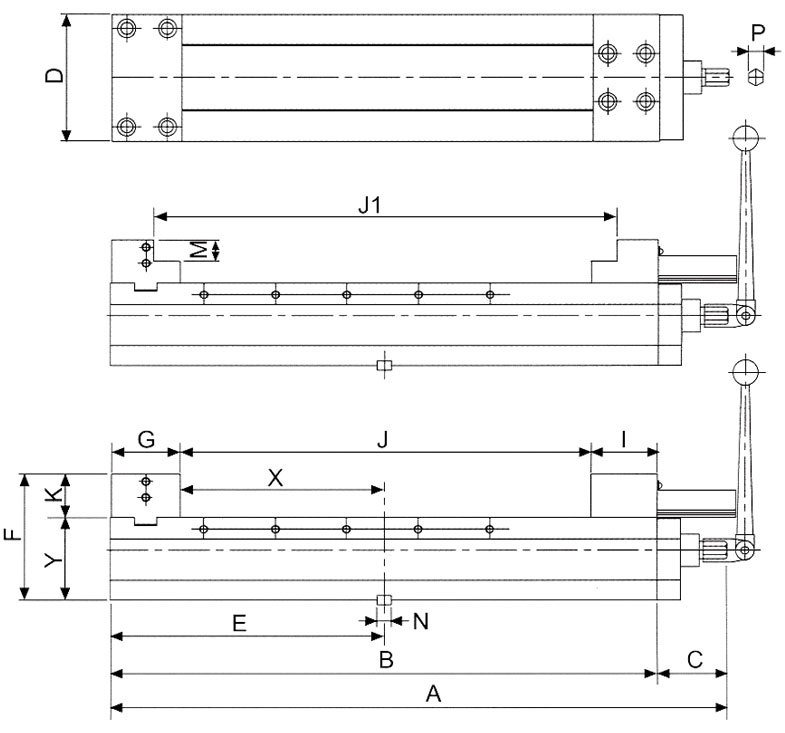

Specifications
| ORDER CODE | V360 |
|---|---|
| MODEL | VCV-160V-L |
| (mm)A | 688 |
| (mm)B | 590 |
| (mm)C | 98 |
| (mm)D | 161 |
| (mm)E | 124 |
| (mm)F | 160 |
| (mm)G | 86 |
| (mm)I | 86 |
| (mm)J | 400 |
| (mm)K | 55 |
| (mm)N | 18 |
| (mm)P | 19 |
| (mm)X | 208 |
| (mm)Y | 105 |
| (kg)Nett Weight | 66 |
No products to compare. This is the only product in this category. Looking for it's specifications?
