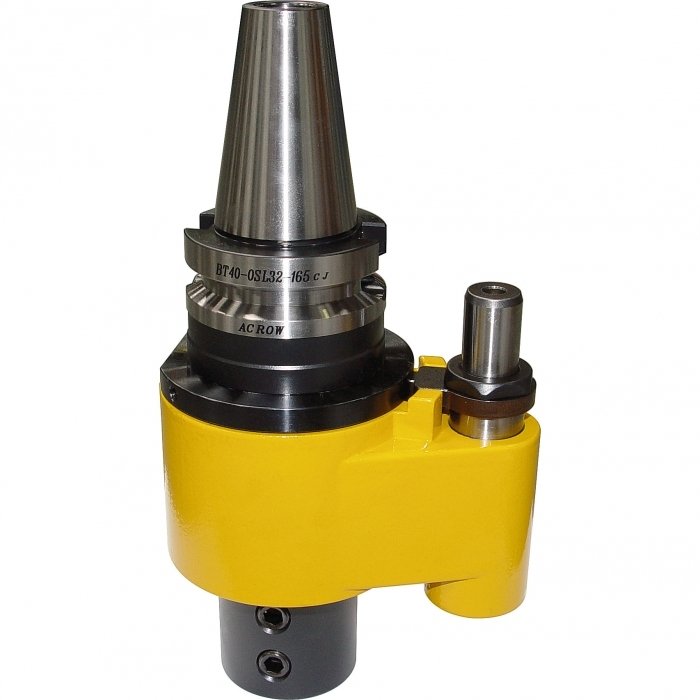

Rotary Through Coolant Holder (BT40) - BT40-OSL32-165
Ø32mm
T250
1 of 1
Discontinued
Order Code: T250
1 Year Warranty
Made in Taiwan
Description
Rotary Through Coolant Holder (BT40) - BT40-OSL32-165
Ø32mm
Overview
Used on Machining centre's where through spindle coolant is not available. Especially used when drilling with a U drill or when cutters are being used and coolant is required to clear out the swarf and cool the cutter.
The coolant is transferred through the arrester block, and arrester arm.
Note: Block Not supplied
The coolant is transferred through the arrester block, and arrester arm.
Note: Block Not supplied
Features
- Manufactured to MAS403BT40 standard
- M16 Pull Stud thread
- 32mm shank capacity
Compare Product Range

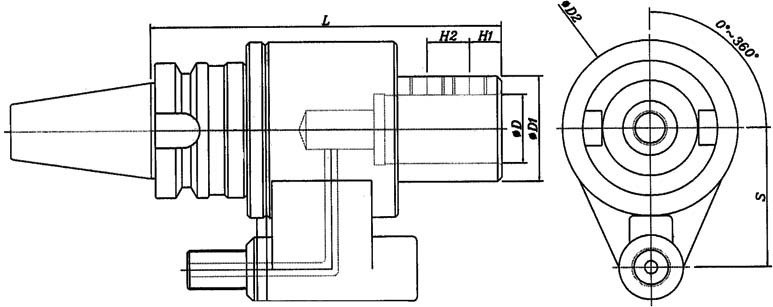

Specifications
| ORDER CODE | T250 |
|---|---|
| MODEL | BT40-OSL32-165 |
| (mm)D (h5) | 32 |
| (mm)L1 | 60 |
| (mm)D1 | 73 |
| (mm)D2 | 82 |
| (mm)L | 165 |
| (mm)H1 | 15 |
| (mm)H2 | 20 |
| (mm)G | M16 x 2 |
| (mm)S | 65 |
| (kg)Nett Weight | 4.2 |
