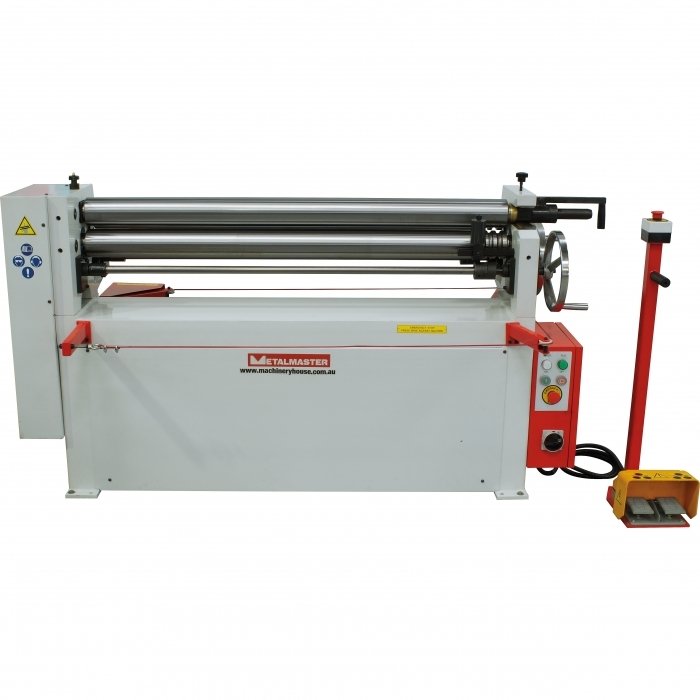

Motorised Plate Curving Rolls - PR-133
1300 x 2.5mm Mild Steel Capacity
Initial Pinch Design
S761
1 of 15
Right View
2 of 15
Rear View
3 of 15
Side View
4 of 15
Roll Adjustment Handles
5 of 15

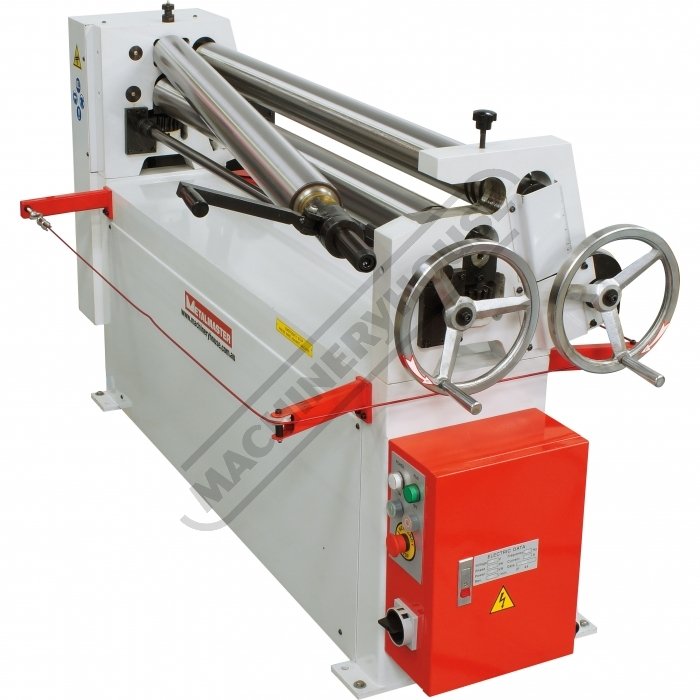

Removeable Top Roller
6 of 15
Front Side View
7 of 15
Conical Bending Guide Roller
8 of 15
Safety Wire Interlock System
9 of 15
Curving Roller Height Adjustment
10 of 15
Rear View Rolls Right Side
11 of 15
Wire Groove Rolls
12 of 15
Rear Hand Wheel with Adjustable Disengage Coupling
13 of 15
Switch Box
14 of 15
Foot Control
15 of 15
Discontinued
Order Code: S761
415V / (NO PLUG)
1 Year Warranty
1 Year Warranty
Description
Motorised Plate Curving Rolls - PR-133
1300 x 2.5mm Mild Steel Capacity
Initial Pinch Design
Features
- Initial pinch rolls with pre-bending
- Two rolls powered by gearbox drive system
- Swing out top roller enables cylinder to be removed
- Safety wire interlock system with emergency shut-off
- Precision ground rolls with wiring grooves
- Includes a conical bending guide roller
- Mobile foot pedal control
- Mild steel capacity is rated on hot rolled material with 250MPA
Compare Product Range
Specifications
| ORDER CODE | S761 |
|---|---|
| MODEL | PR-133 |
| Curving System Type | Initial Pinch |
| (mm)Curving Material Length | 1300 |
| (mm)Curving Plate Thickness - Mild Steel | 2.5 |
| (mm)Minimum Rolling Diameter | 135 |
| (mm)Roll Diameter | 90 |
| (kW / hp)Motor Power | 1.5 / 2 |
| (V / amp)Voltage / Amperage | 415 |
| (mm)Dimensions (LxWxH) | 1800 x 640 x 1000 |
| (kg)Nett Weight | 470 |
