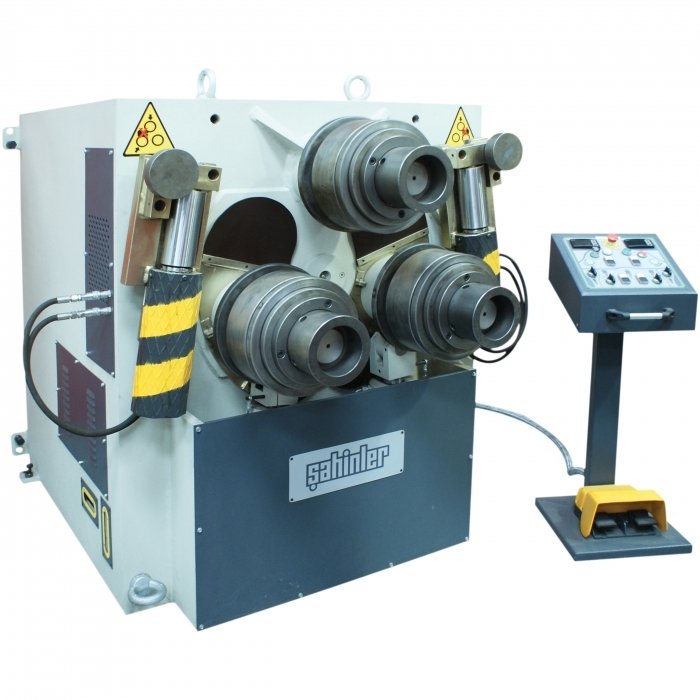

Section & Pipe Rolling Machine - HPK-100
100 x 100 x 12mm Angle Capacity
Includes Digital Readout Display
S758A
1 of 9

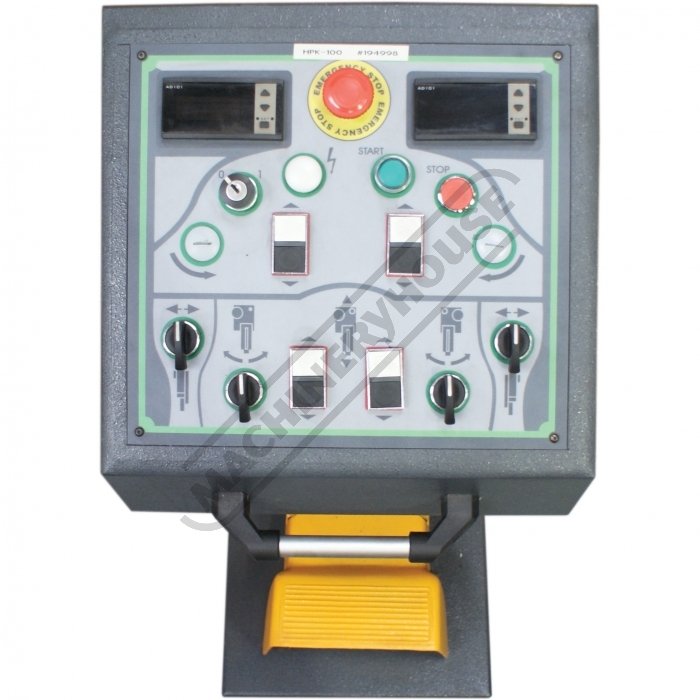

Controller
8 of 9

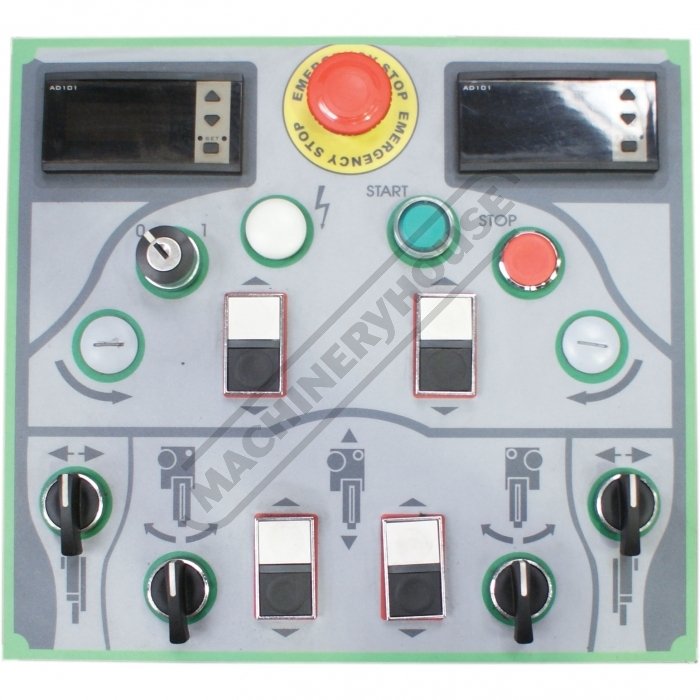

Control Panel
9 of 9
Discontinued
Order Code: S758A
415V / (NO PLUG)
1 Year Warranty
1 Year Warranty
Made in TURKIYE
Description
Section & Pipe Rolling Machine - HPK-100
100 x 100 x 12mm Angle Capacity
Includes Digital Readout Display
Features
- Rolls are hardened & made from high quality steel
- Drive shafts are hardened and ground with double taper roller bearing support
- Machine can be set up in horizontal or vertical working position
- Roving foot pedal control with emergency stop
- Hydraulic lateral angle guide rolls
- Three rollers are powered
- European quality
Includes
- Includes standard rolls
- Independently adjustable hydraulic bottom rollers for pre-bend
- Two digital readout display
- 3-Axis hydraulic lateral angle guide rollers
Compare Product Range
Specifications
| ORDER CODE | S758A |
|---|---|
| MODEL | HPK-100 |
| (Qty)Powered Driven Rolls | 3 |
| (Type)Bending Rolls | Hydraulic - Left & Right |
| (mm)Top Roll Shaft Diameter (Ø) | 100 |
| (mm)Lower Roll Shaft Diameter (Ø) | 100 |
| (mm)Top Roll Diameter (Ø) | 315 |
| (mm)Flat Bar Edge Capacity - MS (size / Ø) | 100 x 20 / 800 |
| (mm)Flat Bar Capacity - MS (size / Ø) | 200 x 30 / 1200 |
| (mm)Square Bar Solid Capacity - MS (size / Ø) | 60 x 60 / 750 |
| (mm)Rectangle Tube Capacity - MS (size / Ø) | 100 x 40 x 4 / 1300* |
| (mm)Square Tube Capacity - MS (size / Ø) | 80 x 50 x 5 / 1500* |
| (mm)Round Bar Solid Capacity - MS (size / Ø) | Ø75 / 800* |
| (mm)Round Tube Capacity - MS (size / Ø) | Ø125 x 2.5 / 1400* |
| (inch / mm)Round Pipe Capacity - MS (size / Ø) | Ø4" x 6.02mm / 1000mm* |
| (mm)Angle Capacity - MS (size / Ø) | 100 x 100 x 12 / 1000 |
| (kW / hp)Motor Power | 7.5 / 10 |
| (V / amp)Voltage / Amperage | 415 |
| (mm)Dimensions (L x W x H) | 2000 x 1450 x 1700 |
| (No / Yes*)Note: Requires Additional Tooling | Yes* |
| (kg)Nett Weight | 3650 |
