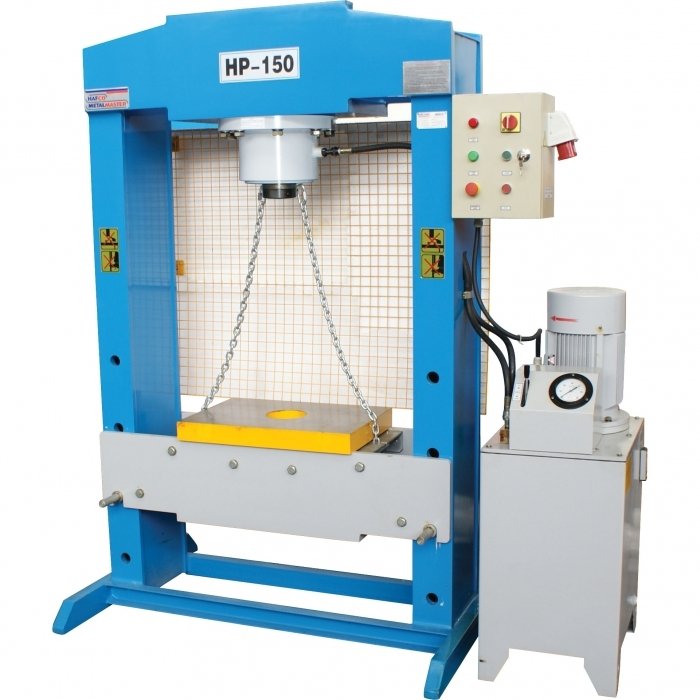

Industrial Motorised Hydraulic Press - 150 Tonne - HP-150
Includes Pressure Gauge, Table Insert & Vee Blocks
P126
1 of 5

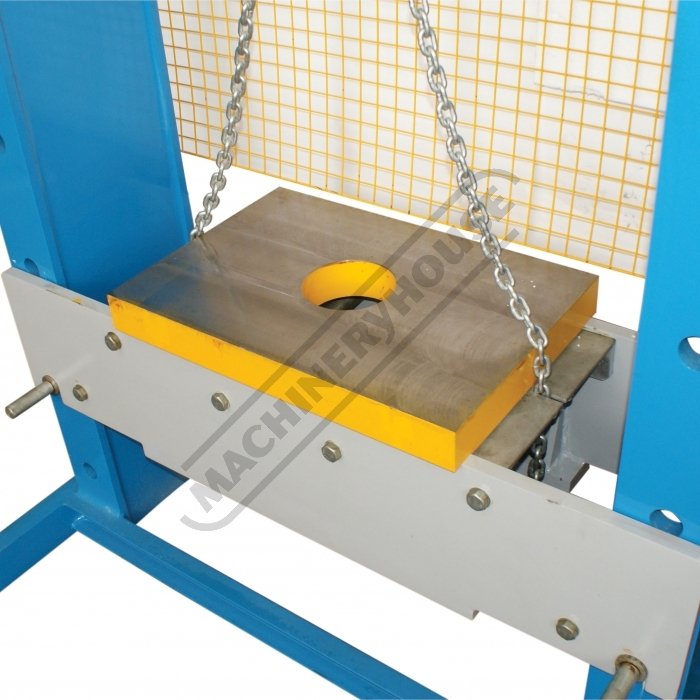

Table Height Adjustment
2 of 5

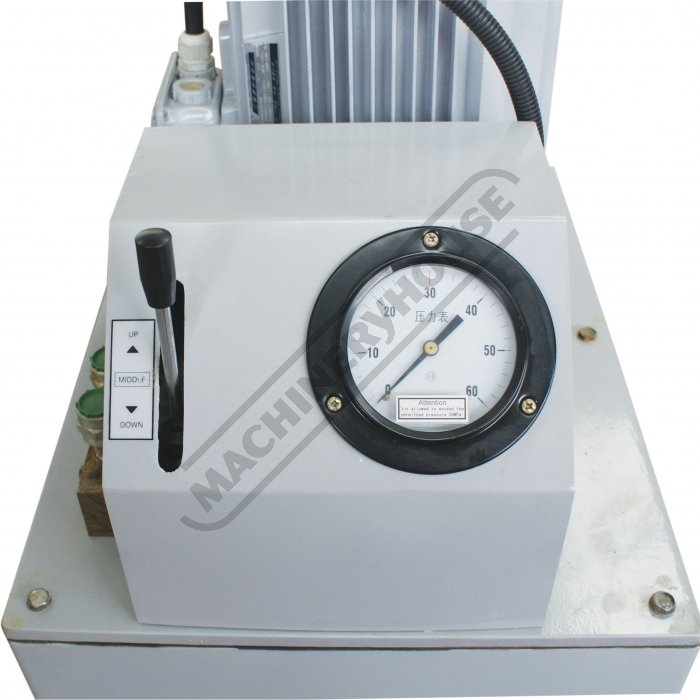

Hydraulic Controls & Pressure Gauge
3 of 5

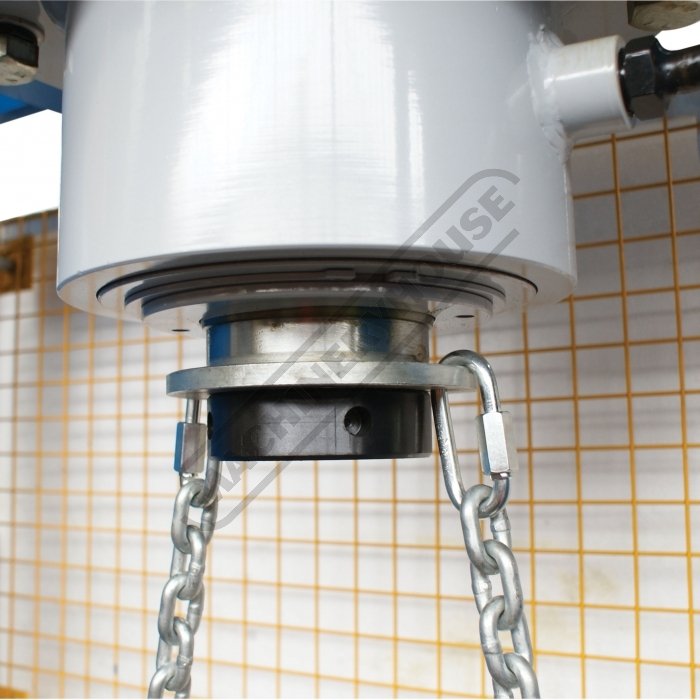

Cylinder
4 of 5

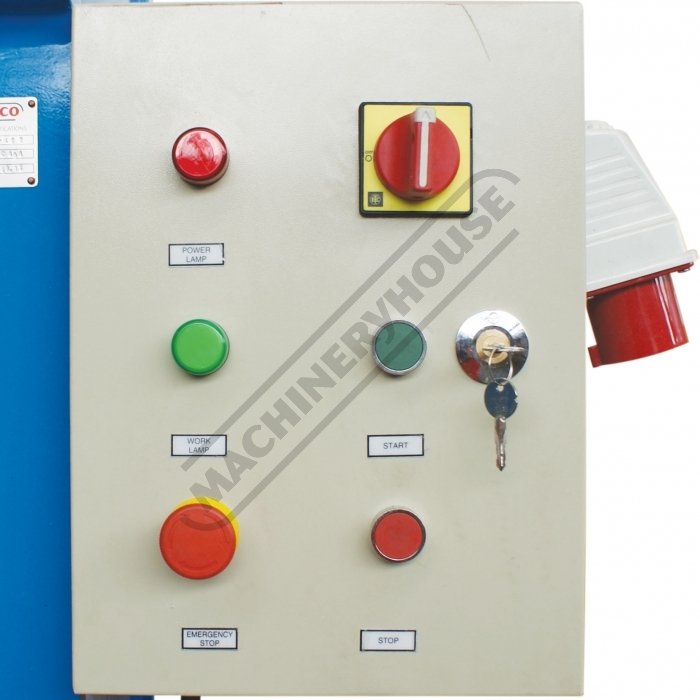

Control Box
5 of 5
Discontinued
Order Code: P126
415V / (NO PLUG)
1 Year Warranty
1 Year Warranty
Description
Industrial Motorised Hydraulic Press - 150 Tonne - HP-150
Includes Pressure Gauge, Table Insert & Vee Blocks
Overview
150 Tonne Industrial Hydraulic Press
Suited for the Industrial workshop, for pressing of bearings, bushings & straightening shafts, bending steel as well has all general pressing applications
Suited for the Industrial workshop, for pressing of bearings, bushings & straightening shafts, bending steel as well has all general pressing applications
Features
- Easy to use and powerful press for most applications
- Ideal for the repair of axles, shafts, & press fit of bearings & bushings
- Heavy duty welded steel fabricated frame
- Strong hydraulic cylinder ensures precise pressing during operation
- Fitted with pressure gauge
- Safety overload valve
- Hydraulic joystick control lever
- Powerful TEFC motor
- Heavy duty one piece table plate insert
- Extra heavy duty table support with high tensile setting pins
- Table can be adjusted for height using chains and Hydraulic ram
- Pre-Commissioning:
- 1. Press is run & tested prior delivery
- 2. Hydraulic oil is included with machine
Compare Product Range
Specifications
| ORDER CODE | P126 |
|---|---|
| MODEL | HP-150 |
| (Tonne)Pressing Capacity | 150 |
| (Type)Hydraulic Ram Operation | Motorised System |
| (Yes / No)Sliding Ram (left-right) | No |
| (mm)Width Between Front Posts | 1100 |
| (mm)Ram To Table (Max.) | 965 |
| (mm)Cylinder Stroke | 350 |
| (kW / hp)Motor Power | 7.5 / 10 |
| (V)Voltage | 415 |
| (kg)Nett Weight | 2010 |
