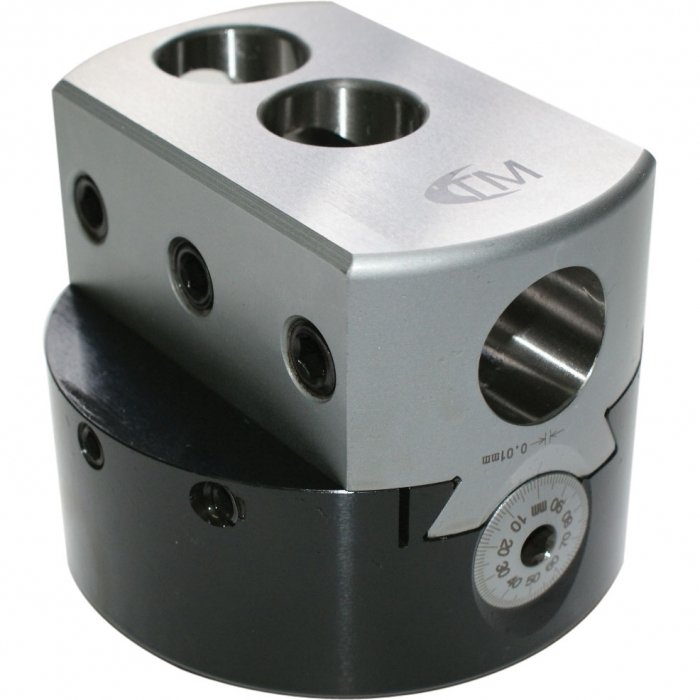

Sturdy boring head suitable for roughing & finishing work. The 100mm head uses the same arbors as the 50 and 75mm heads and makes for an easy and cost efficient addition to the workshop.
Fitted with 2 vertical and one cross hole for the boring bars
The boring head allows the boring bar to be adjusted at a right angle to the spindle axis. This feature makes it possible to position the boring cutter accurately to bore holes of varying diameters.

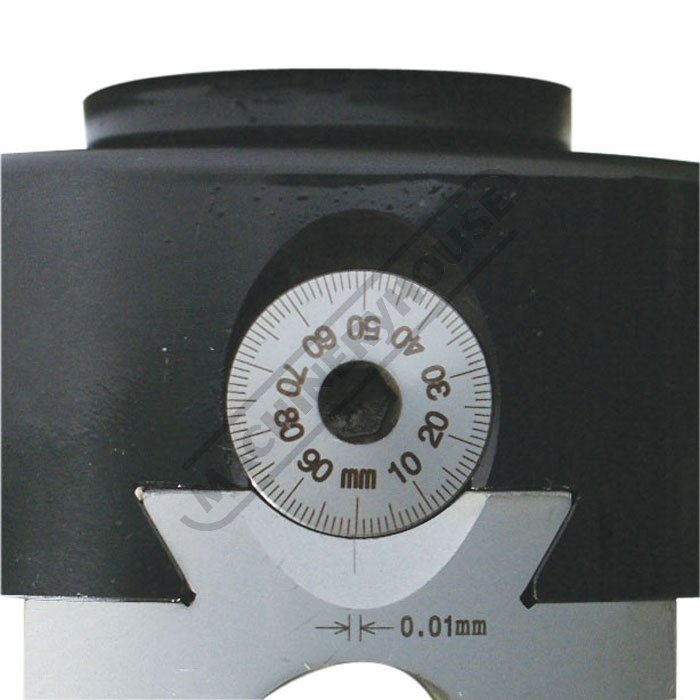

The adjusting screw is hardened & ground and is a non reflecting satin chrome. The reading dial allows for adjustments of 0.01mm on the tool slide and is a direct reading.
