Mill Drill - Geared Head + Variable Speed - SIEG SUPER X3

Table Travel: (X) - 400mm (Y) - 150mm (Z) - 350mm

Dovetail Vertical Column

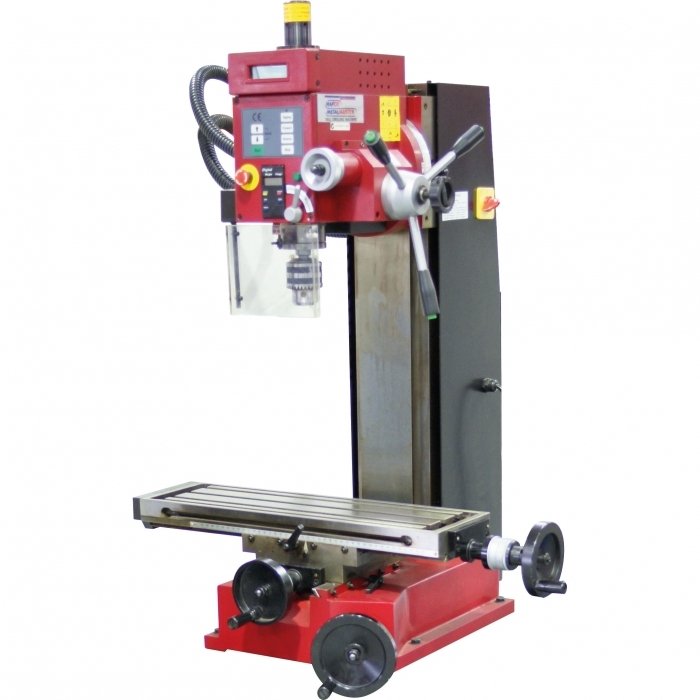

M155 1 of 12

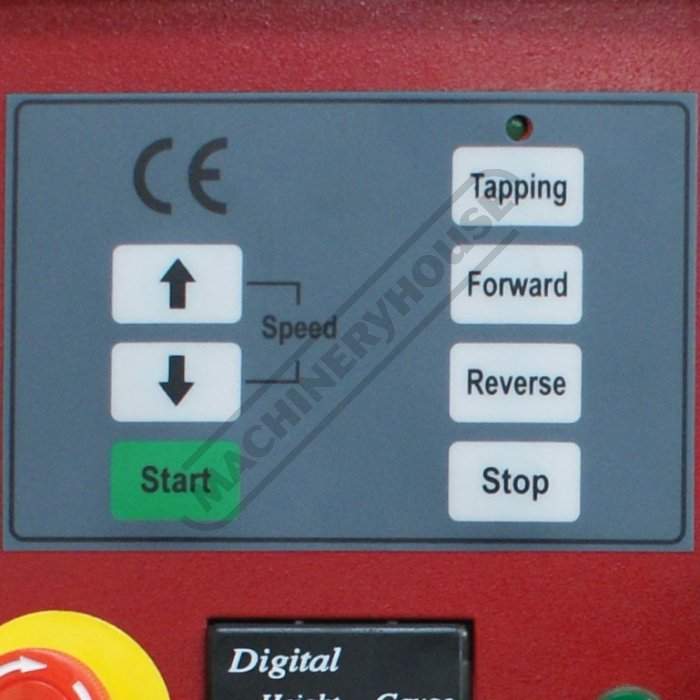

Spindle Control Panel 2 of 12

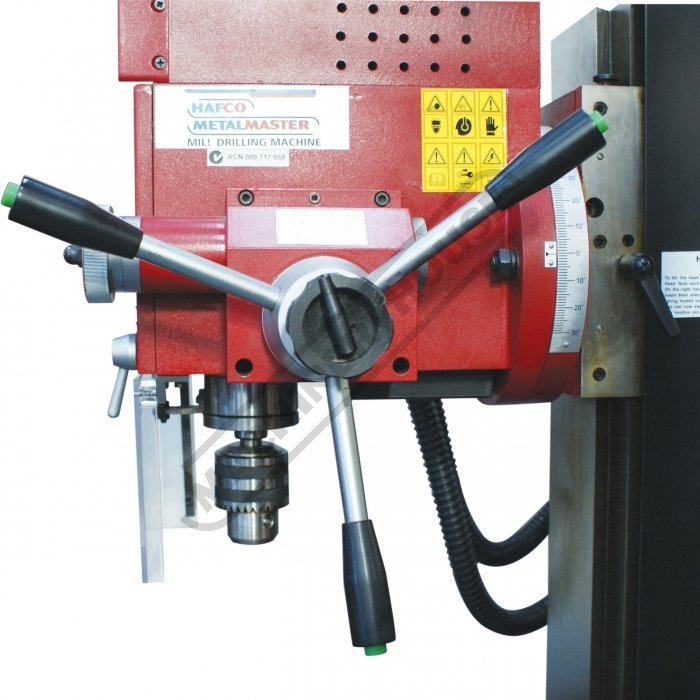

Quill Feed Handle with Fine Adjustment Dial 3 of 12

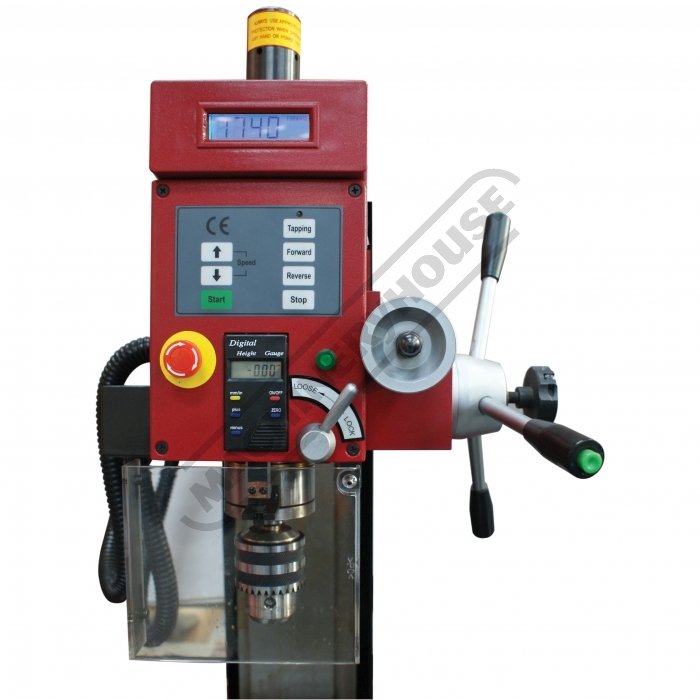

Head Controls 4 of 12

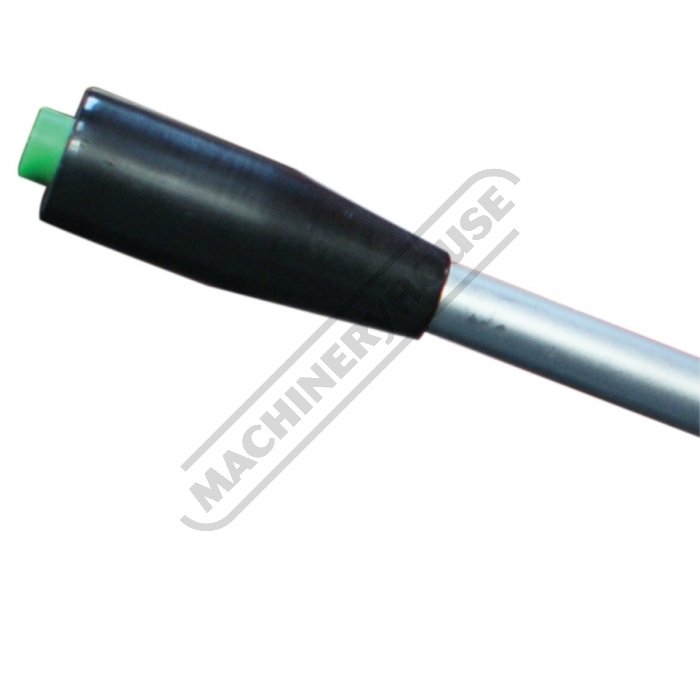

Tapping Spindle Reverse Button 5 of 12

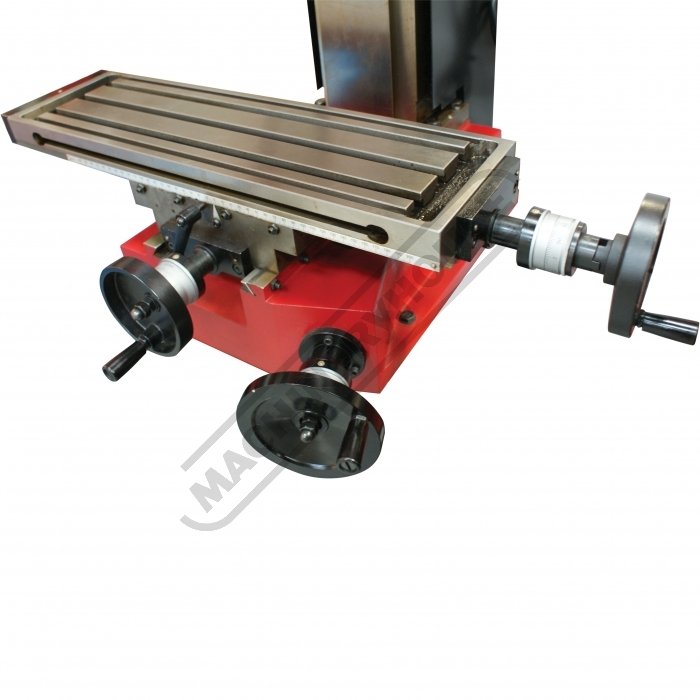

Table 6 of 12

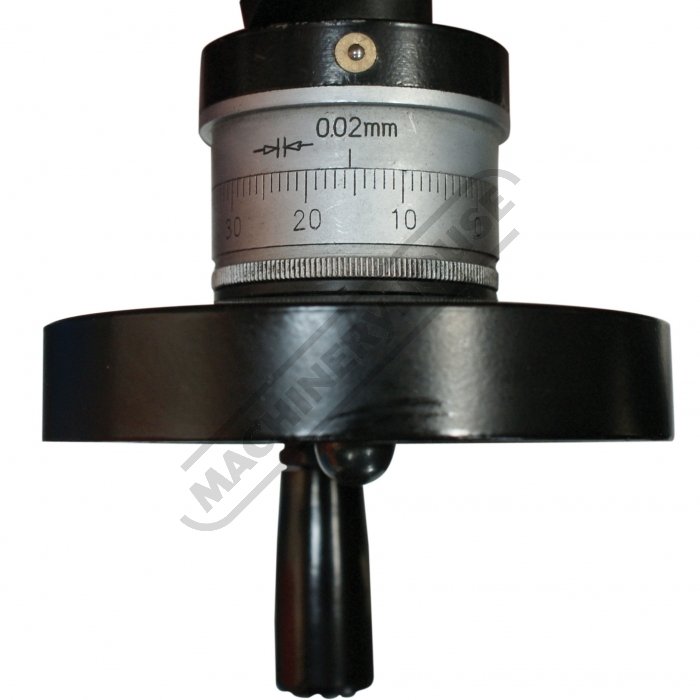

Table Movement Dial 7 of 12

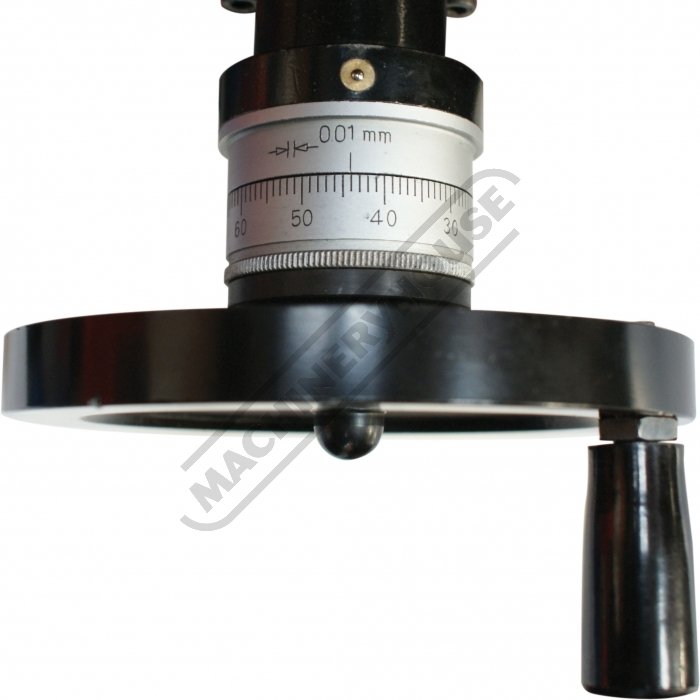

Table Movement 8 of 12

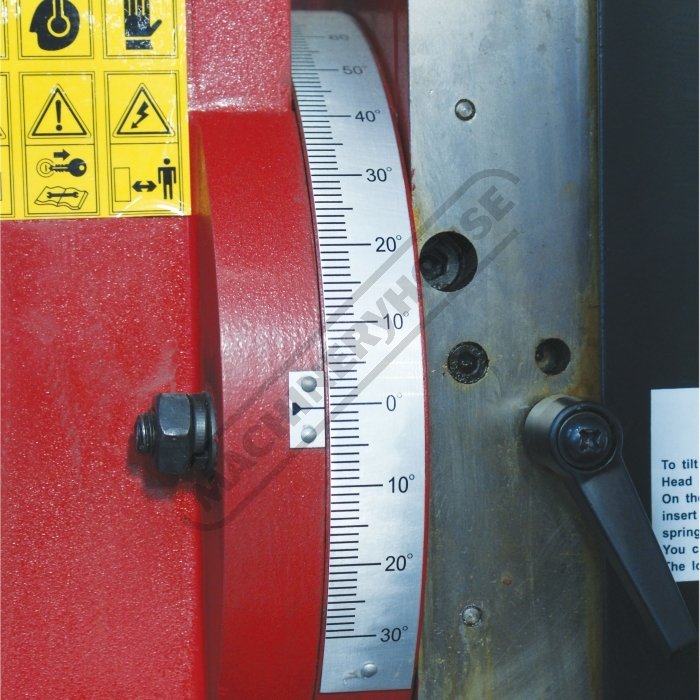

Tilting Head Scale 9 of 12

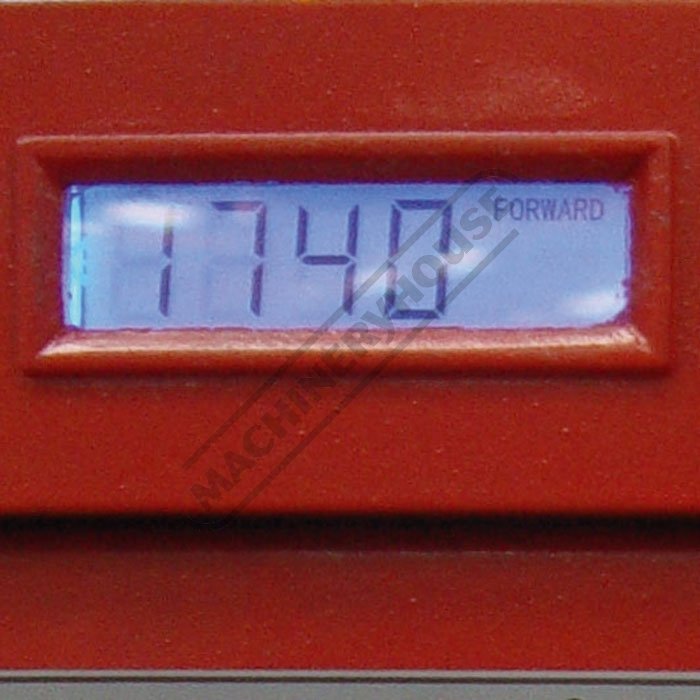

Digital spindle speed readout display 10 of 12

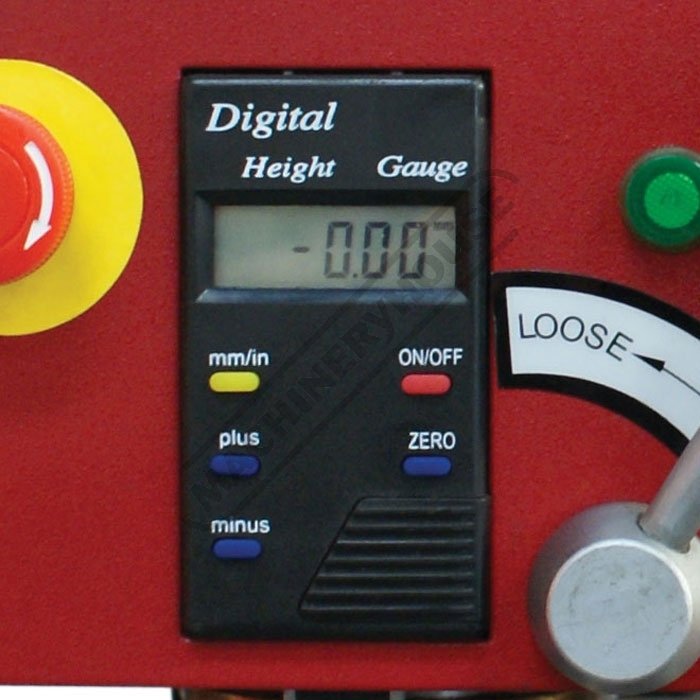

Digital Readout for Height Reading 11 of 12

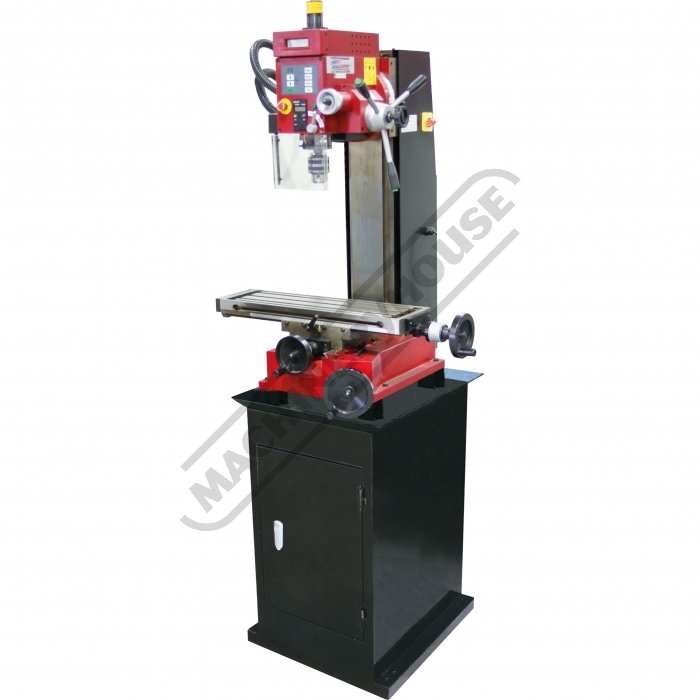

Shown mounted to Optional Stand 12 of 12

SIEG

Discontinued

Order Code: M155

240V / 10A
1 Year Warranty

Product is no longer available
Click here to view a similar item: M652 View a similar item: M652

Compare

Wishlist

Description Specifications Compare Accessories Related Downloads

Description

Mill Drill - Geared Head + Variable Speed - SIEG SUPER X3

Table Travel: (X) - 400mm (Y) - 150mm (Z) - 350mm

Dovetail Vertical Column

Overview

Excellent quality mill drill machine designed for the model engineer.

The Super X3 mill drill is powered by a 1000W (1.3hp) electronic variable speed motor adjusted by a keypad located on the front control panel.

Heavy duty cast iron body and base for better stability.

Precision machined work table.

Features

Electronic variable spindle speed
Digital spindle speed readout display
Mill head tilts to tilts 30º left & 90º to the right
Thread tapping function incorporated with forward/reverse buttons on quill handle @ M12 capacity
Digital readout display for quill depth (Includes LR44 battery)
Fine feed hand wheel operating quill feed
Spindle lock for quill
Table lock on both axis
Brush-less DC 1000W variable speed motor (100-1750rpm)
Precision dovetail vertical slide
Ground work table with T-slots
Metric dial graduations @ 0.02mm for X & Y axis
Vertical dial graduations @ 0.01mm

Includes

Drill chuck
3MT arbor
Safety cutter guard

Specifications

Compare Product Range

Specifications

ORDER CODE	M155
MODEL	SUPER X3
Digital Readout	Optional
Type	Vertical
(mm)Table Size	550 x 160
Column Type	Dovetail
Spindle Taper - Vertical	3MT
(mm)Longitudinal Travel (X-Axis)	400
(mm)Cross Travel (Y-Axis)	150
(mm)Vertical Travel (Z-Axis)	350
Type of Slides	Dovetail
(mm)Spindle to Table	400
(mm)Spindle Travel / Diameter	70 / 60
(mm)Throat Depth (max.)	230
Tilting Head (Left ~ Right)	30º Left / 90º Right
Tilting Head (Forward ~ Back)	Fixed
(mm)Drilling Capacity	25
(mm)End Milling Capacity	25
(mm)Face Milling Capacity	50
(mm/min)Power Feed - Longitudinal (X-Axis)	Optional
(inch / mm)Table T-Slot Size	12
(kg)Work Table Load Capacity	35
(No./ rpm)Spindle Speeds Vertical	Variable (100 - 1750)
(kW / hp)Motor Power - Vertical Spindle	1 / 1.3
(V / amp)Voltage / Amperage	240 / 10
(kg)Nett Weight	195
