HAFCO METALMASTERCK-100A
Centre Lathe
  • 1 of 14

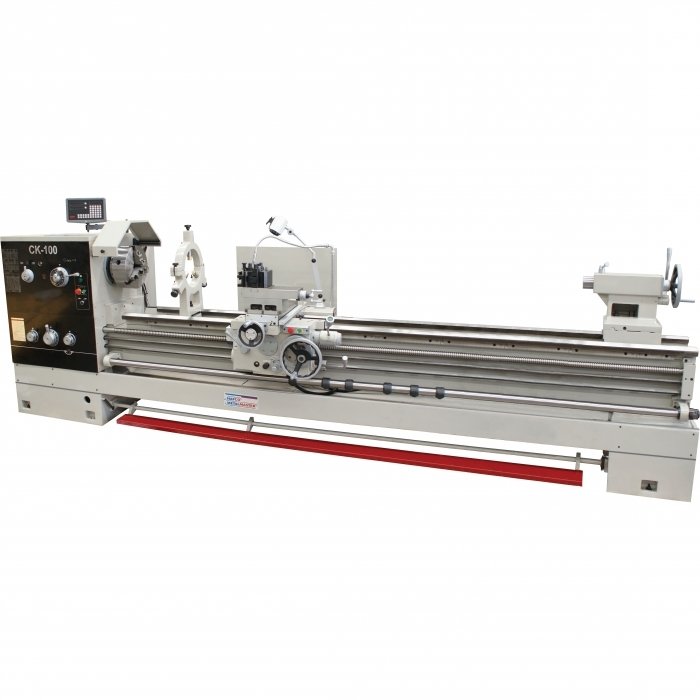

    CK-100A
  • 2 of 14

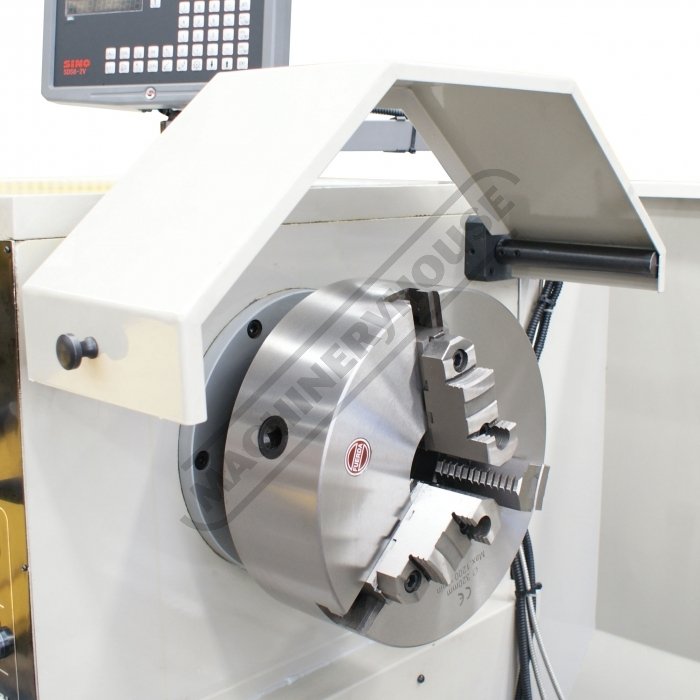

    Chuck Guard
  • 3 of 14

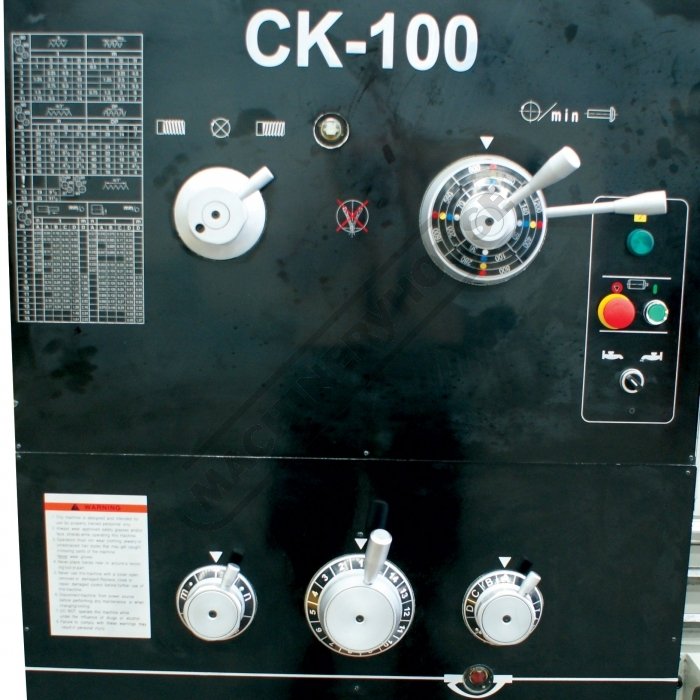

    Headstock controls
  • 4 of 14

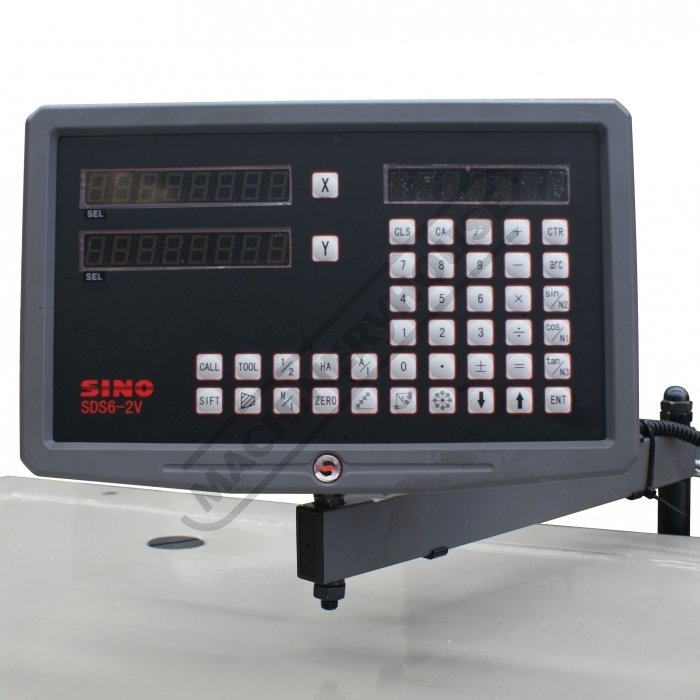

    2 Axis digital readout system
  • 5 of 14

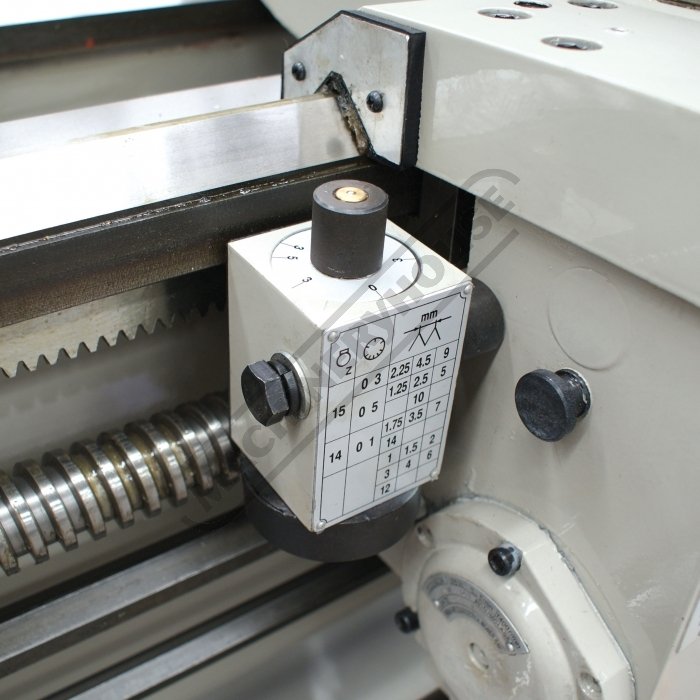

    Thread Chasing Dial
  • 6 of 14

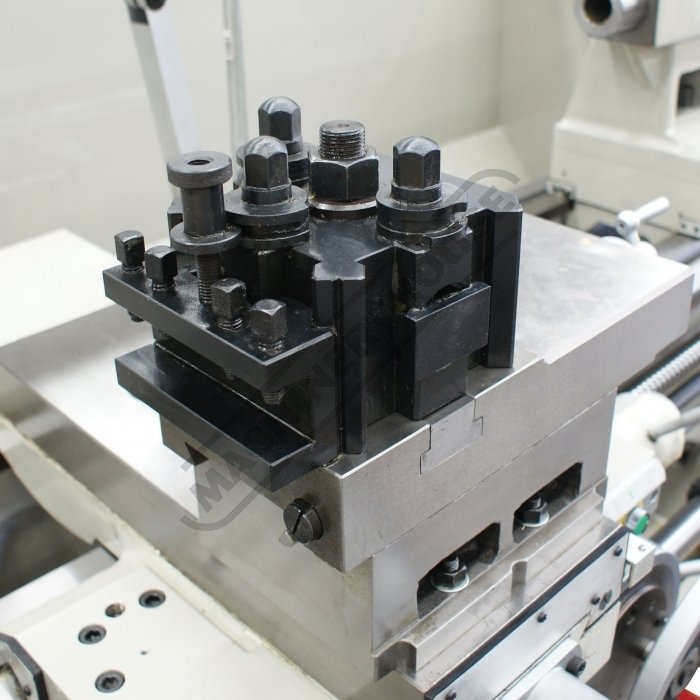

    Quick change toolpost
  • 7 of 14

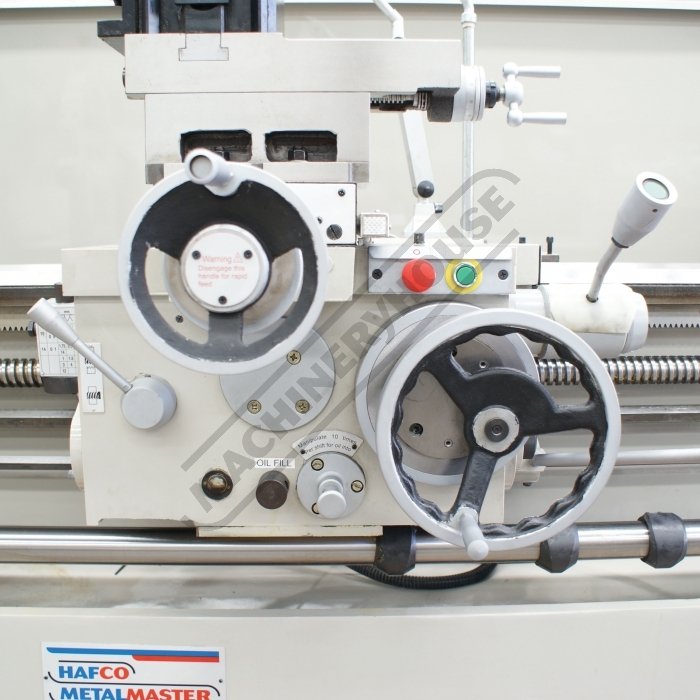

    Saddle controls
  • 8 of 14

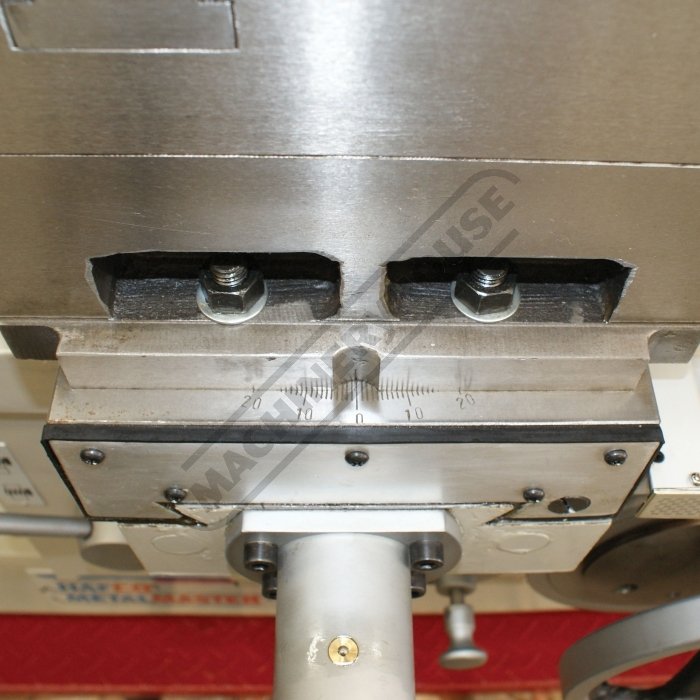

    Taper Adjustment on Compound Slide
  • 9 of 14

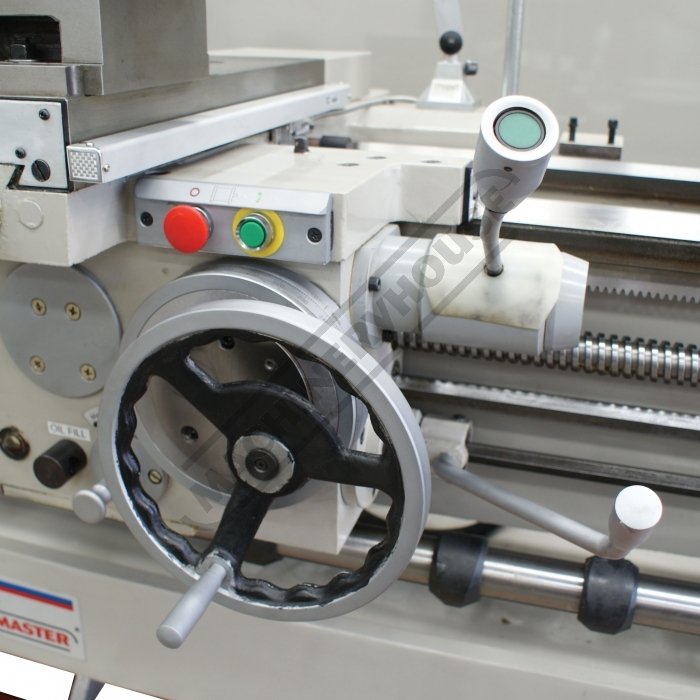

    Rapid Traverse Selection Lever on Saddle
  • 10 of 14

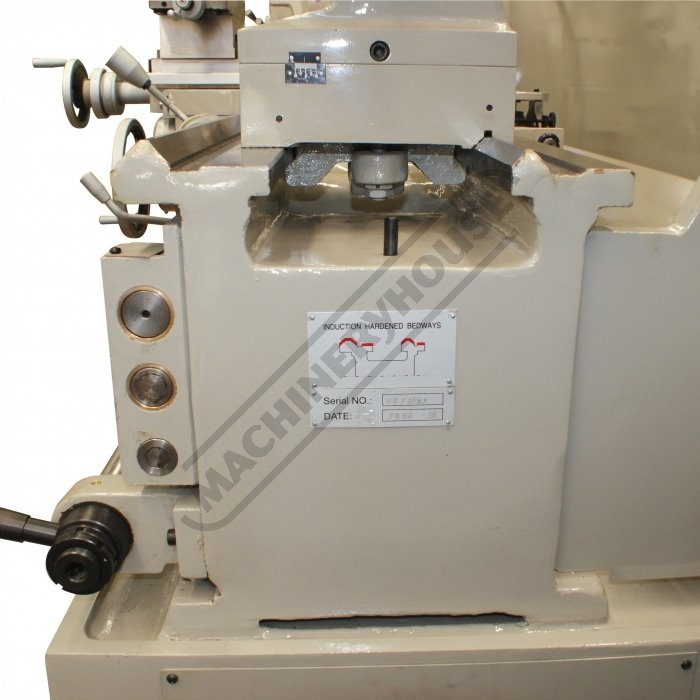

    Induction Hardened Bedways
  • 11 of 14

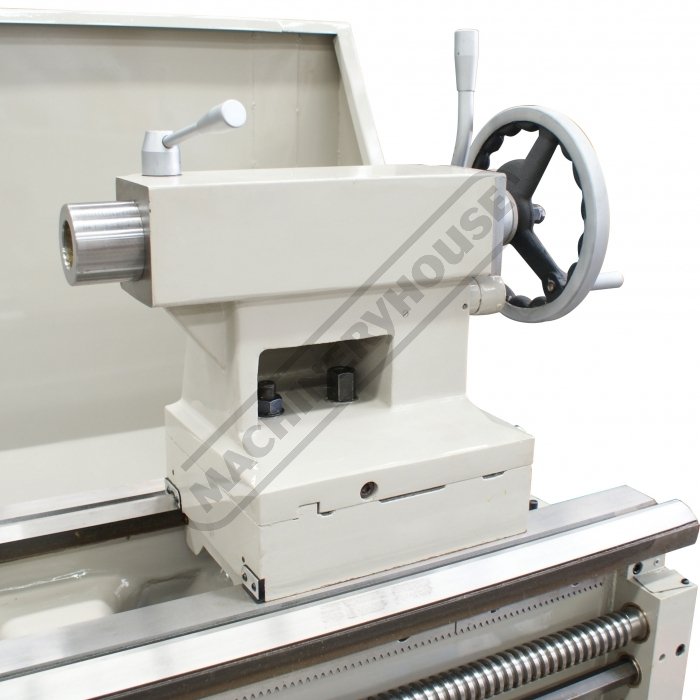

    Heavy duty tailstock
  • 12 of 14

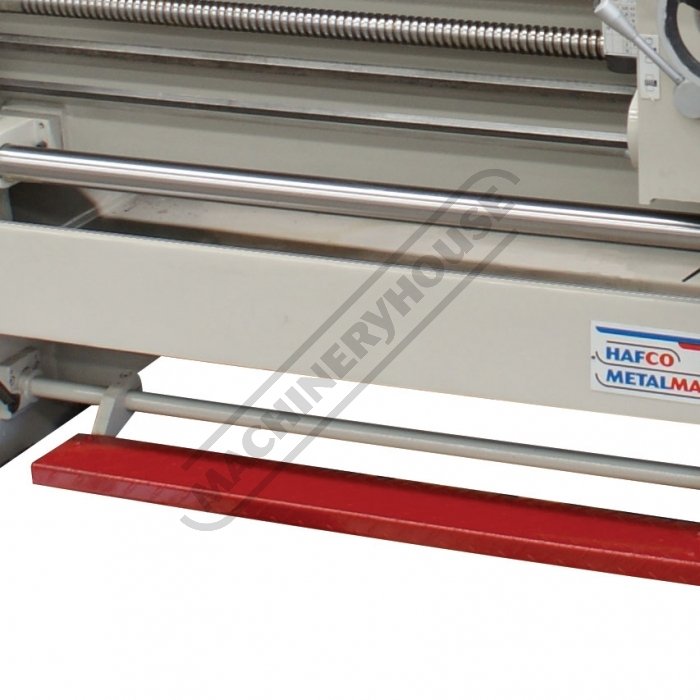

    Footbrake
  • 13 of 14

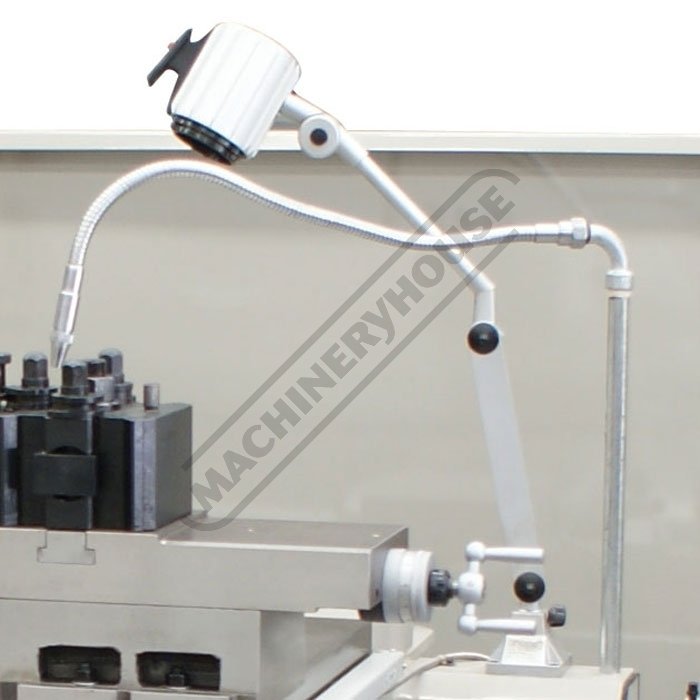

    Worklight and Coolant System
  • 14 of 14

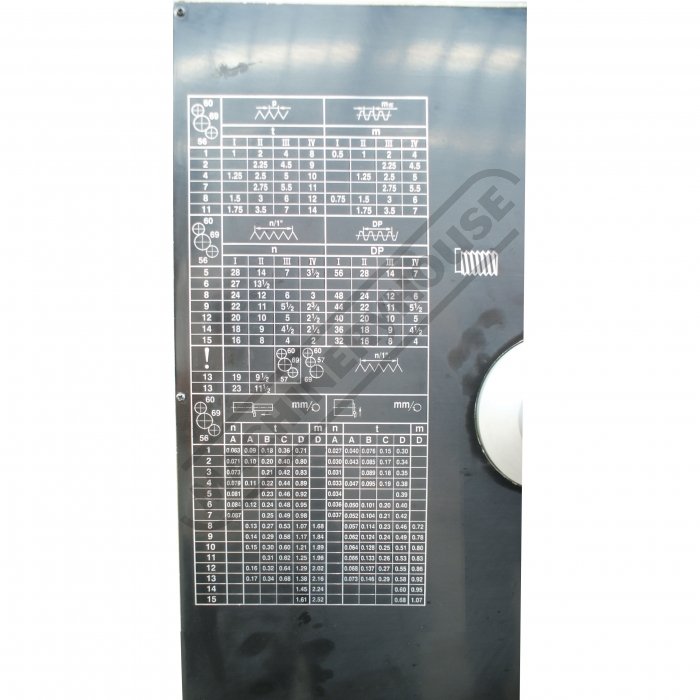

    Thread Charts
CK-100A
Centre Lathe (415V)
660 x 3000mm - 105mm Bore
Includes Digital Readout, Quick Change Toolpost & Taper Turning Attachment
HAFCO METALMASTER
CODE
L667D
Model
CK-100A
Digital Readout System Fitted
Quick Change Toolpost Fitted
Taper Turning Attachment
Tool Height To Suit
25mm
Distance Between Centres
3000mm
Swing Over Bed
660mm
Swing Over Cross-slide
420mm
Swing In Gap
870mm
Centre Height
330mm
Spindle Bore
105mm
Camlock Spindle Size
D1-8
Bed Width
420mm
Head Stock Spindle Taper
6MT
Tail Stock Taper
5MT
Cross Slide Travel
360mm
Compound Slide Travel
145mm
Lead Screw
Metric
Cross Feed Range (X-Axis)
0.027-1.07mm/rev
Longitudinal Feed Range (Z-Axis)
0.063-2.52mm/rev
Metric Thread Steps & Pitch Range
22 (1-14mm)
Imperial Thread Steps & TPI Range
28 (2-26TPI)
3 Jaw Chuck Diameter
325mm
4 Jaw Chuck Diameter
400mm
Spindle Steps / Speed Range
12 (36-1600rpm)
Motor Power
9kW / 12hp
Voltage
415V
Weight (nett)
4200Kg
Features
  • 2 Axis digital readout system
  • Quick change toolpost
  • Taper turning attachment fitted to saddle
  • Triple bearings supporting headstock spindle
  • Adjustable taper roller bearings providing spindle accuracy
  • Precision 'V'-beds & headstock gears are all hardened & ground
  • Multiple discs forward and reversing clutch system
  • adjustable feed stop system with 6 individual sliding stops
  • Overload protection on drive motor and coolant system
  • Universal enclosed gearbox incorporating metric & imperial thread capabilities
  • Foot operated spindle brake with safety cut out switch
  • X & Z axis rapid traverse selection lever incorporated on the saddle @ 4.5m/min
  • 405mm wide induction hardened heavy duty cast iron bed
  • Removable gap bed allowing work piece to swing up to 870mm
  • Cross slide handle disengages when auto feed is used
  • Saddle hand wheel disengages when auto feed is used
  • Adjustable clutch for auto feeds protects machine from overloading during machining
  • Chuck guard fitted with safety micro switch
  • Micro switch on side access door
  • Powered longitudinal and cross feeds
  • Metric calibrated feed dials
  • Coolant system with flexible hose enabling operator to manipulate flow direction
  • Oil sight glass for head stock and gearbox & apron
  • Lubrication pump on saddle oiling slides
  • Low voltage halogen work light
  • D1-8 camlock spindle for quick chuck removal
  • 12 spindle speeds 36-1600rpm
  • Large 105mm spindle bore
  • 9kW / 12HP 415V main motor
Includes
  • 2 Axis digital readout system
  • Quick change toolpost
  • Taper turning attachment fitted to saddle
  • 325mm 3-jaw chuck with reverse jaws
  • 400mm 4-jaw chuck
  • Face plate
  • Fixed steady
  • Travelling steady
  • Dead centres
  • Thread chasing dial
  • Foot brake
  • Coolant system
  • Work light
  • Chuck guard
  • Rear splash guard
  • Spindle reducing bush
