Wide Belt Sander - WBS-1836
420mm
L124
1 of 10

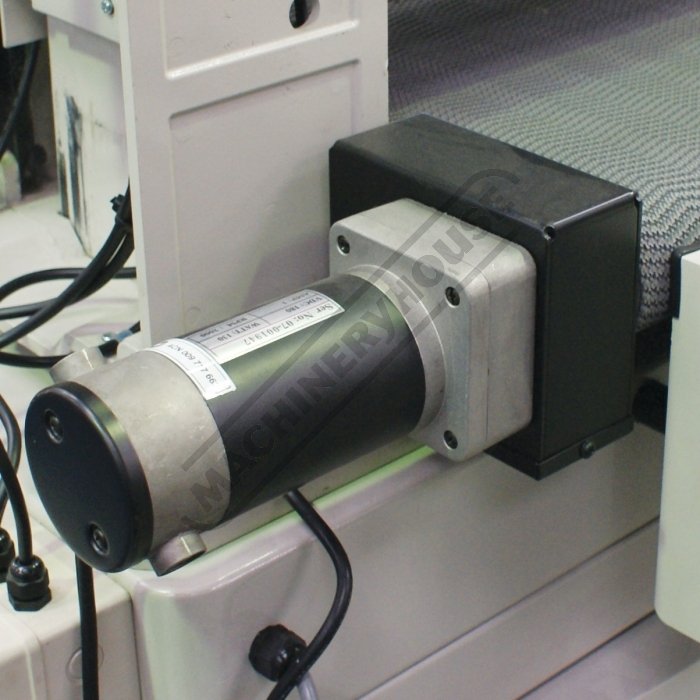

Belt Motor
2 of 10

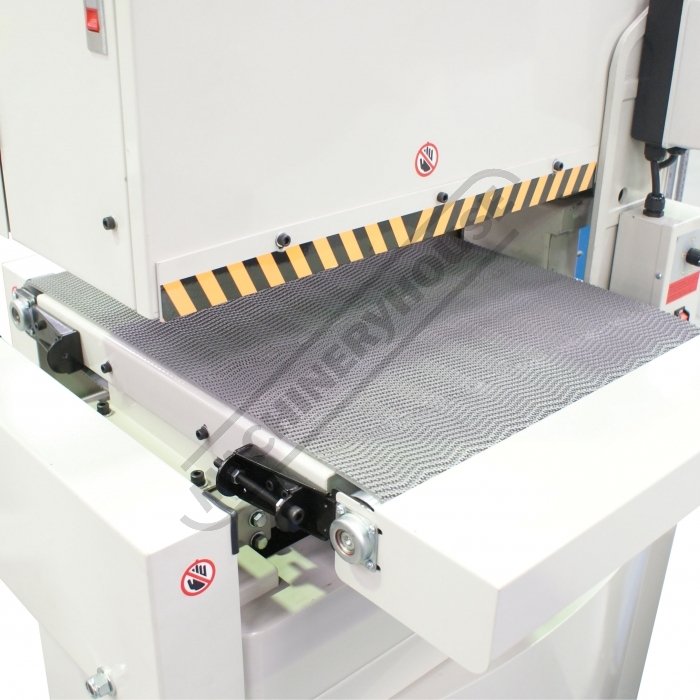

Oscillating belt action to prolong belt life
3 of 10

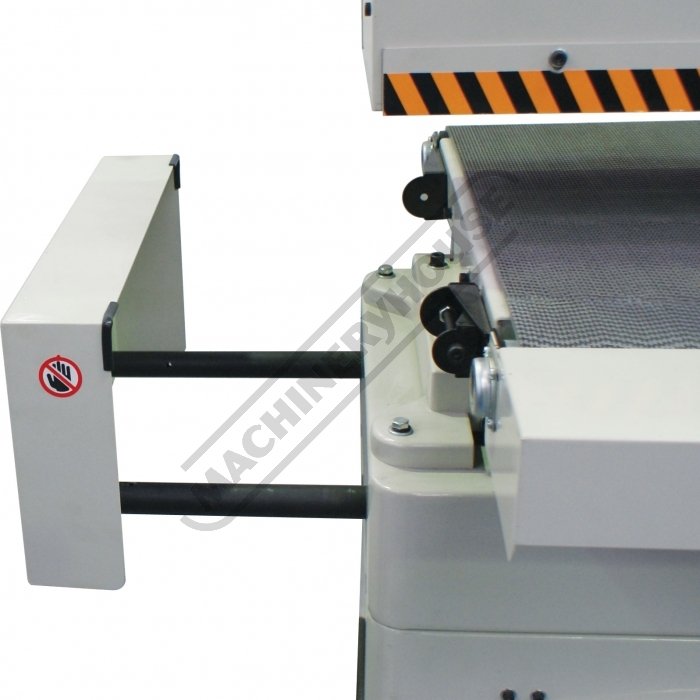

Material Support
4 of 10

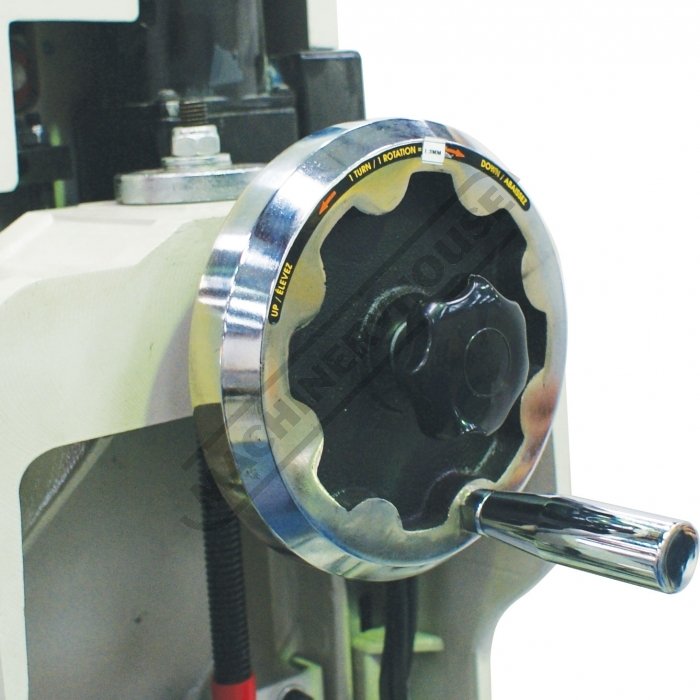

Height Adjustment Handle
5 of 10

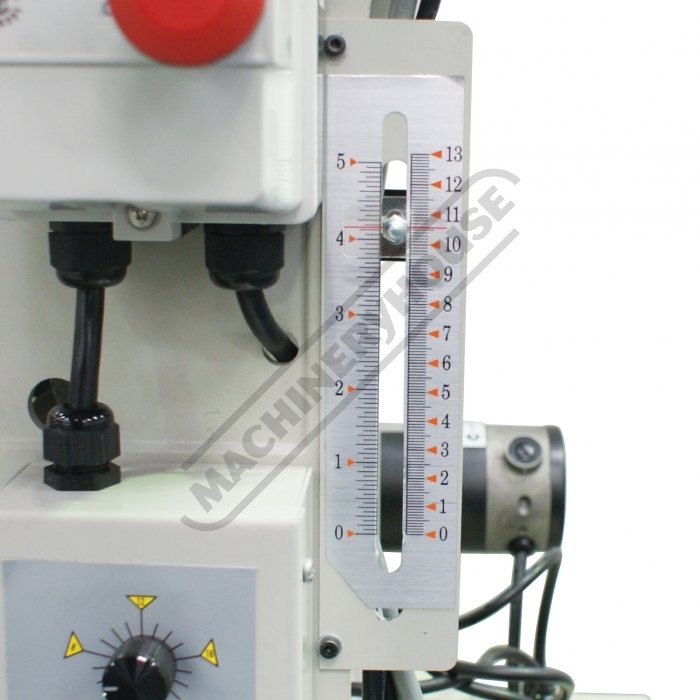

Height Gauge
6 of 10

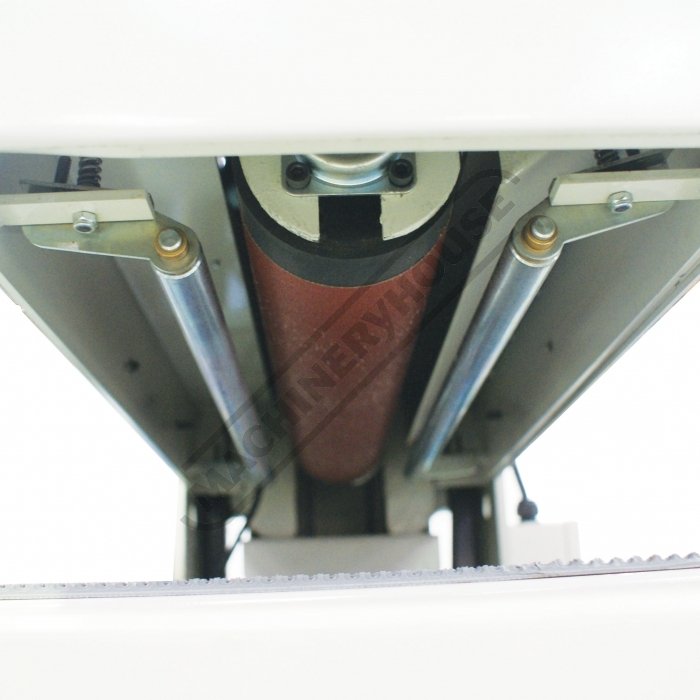

Sander Drum with Guide Rolls
7 of 10

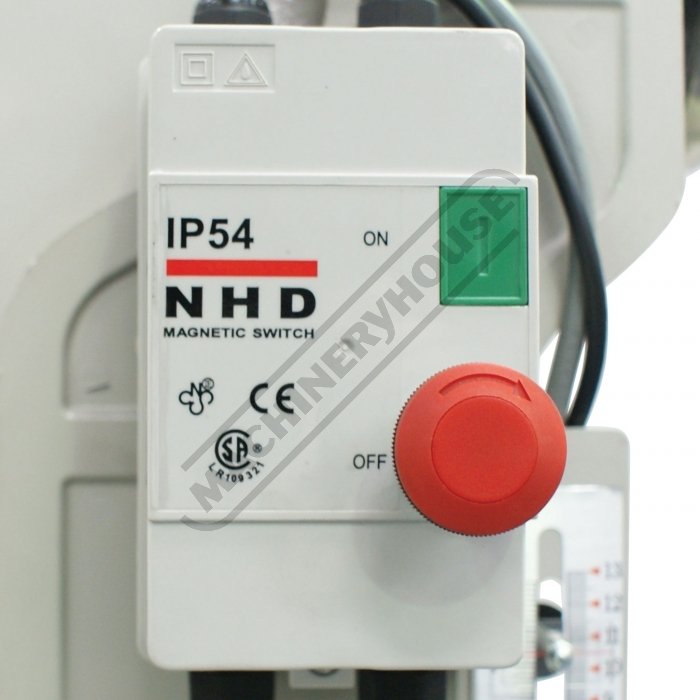

Switch
8 of 10
Variable Speed Dial
9 of 10
On Off Switch
10 of 10
Discontinued
Order Code: L124
240V / 15A
2 Years Warranty
2 Years Warranty
Made in Taiwan
Description
Wide Belt Sander - WBS-1836
420mm
Overview
Made in Taiwan
Features
- Oscillating belt action to prolong belt life
- Open ended sander provides timber width capacity of (420mm with 1 pass) & (840mm with 2 passes)
- High efficient sanding system
- Side and rear extension tables
- Depth scale in both metric and imperial graduation
- Variable feed speed 1.8 - 9.0 M/min
- 100mm dust chute
- Safety magnetic switch with overload protection
- Easy adjustable conveyor belt tracking system
- 2.2kW / 3hp Induction 240V motor
- Quality Taiwanese manufacturer
Compare Product Range
Specifications
| ORDER CODE | L124 |
|---|---|
| MODEL | WBS-1836 |
| (m/min)Variable Table Feed Speed | 1.8 - 9 |
| (rpm)Sanding Drum Speed | 1420 |
| (mm)Belt Size | 457 x 1002 |
| (mm)Drum Diameter | 127 |
| (mm)Max Sanding Width | 420 |
| (mm)Max Sanding Thickness | 127 |
| (mm)Min Sanding Thickness | 6 |
| (Qty x mm)Dust Collector Port Diameter | 1 x Ø100 |
| (hp)Feed Motor Power | 1/4 |
| (kW / hp)Motor Power | 2.2 / 3 |
| (V / amp)Voltage / Amperage | 240 / 15 |
| (kg)Nett Weight | 265 |
