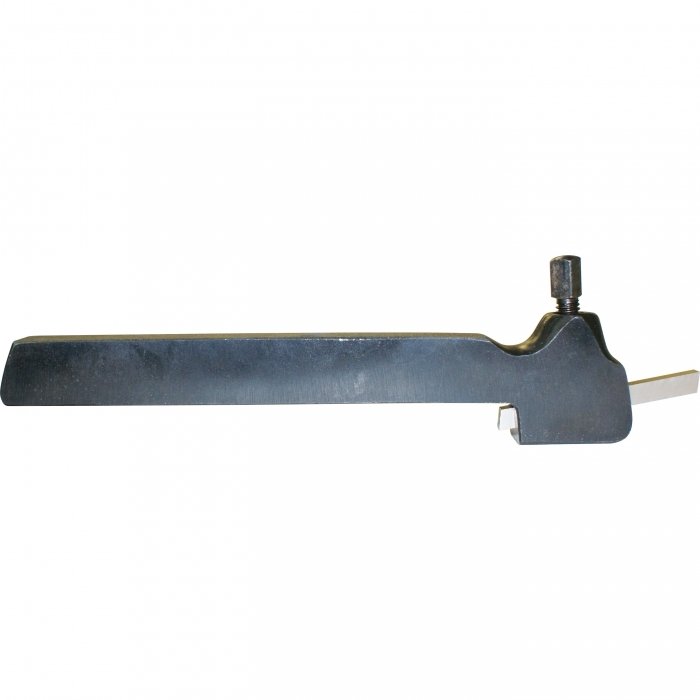

Straight Lathe Turning Tool Holder - English Style
16 x 19mm
HSS bit not included
L075S
1 of 5

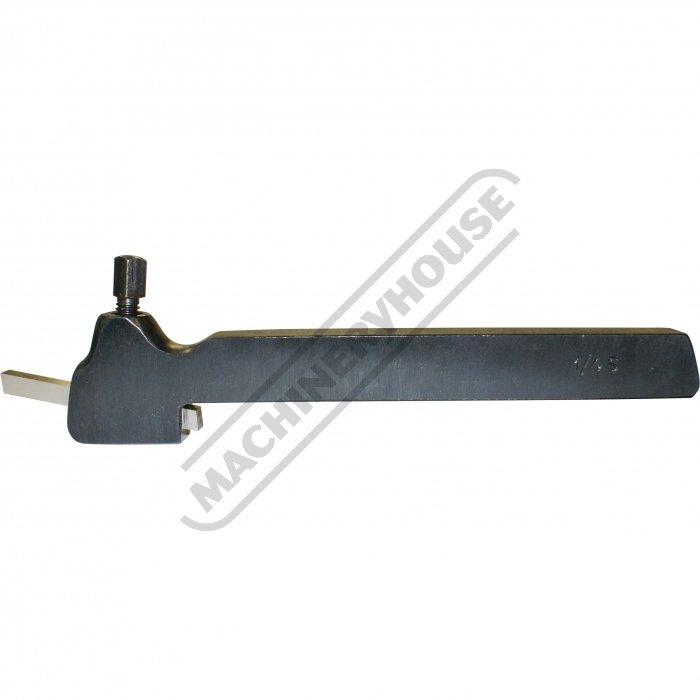

Rear View
2 of 5

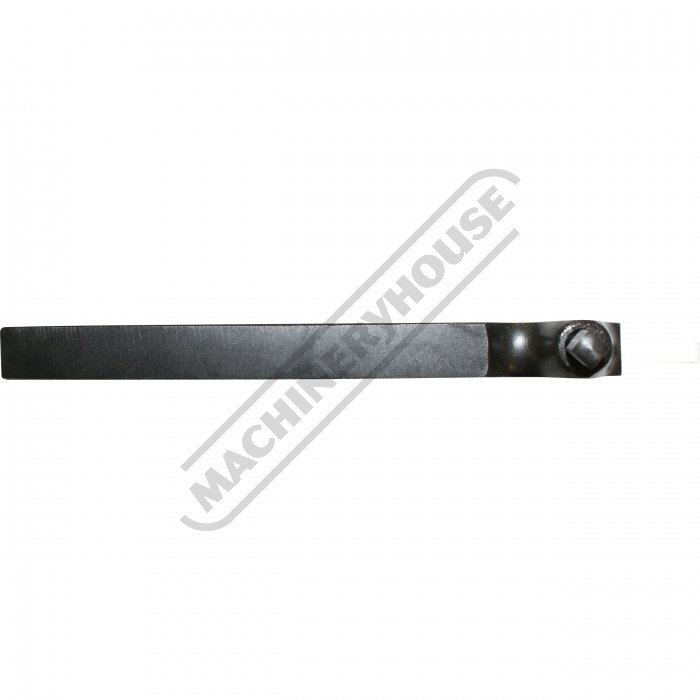

Top View
3 of 5

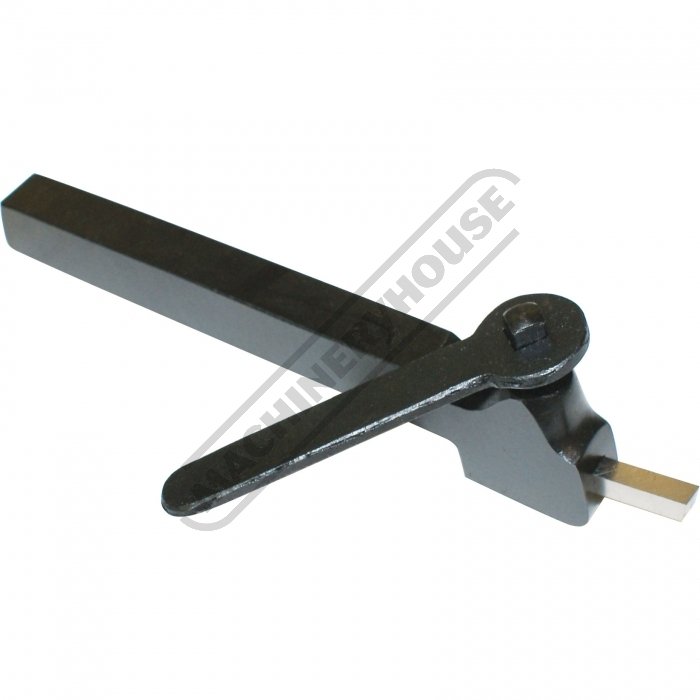

Shown with Spanner
4 of 5

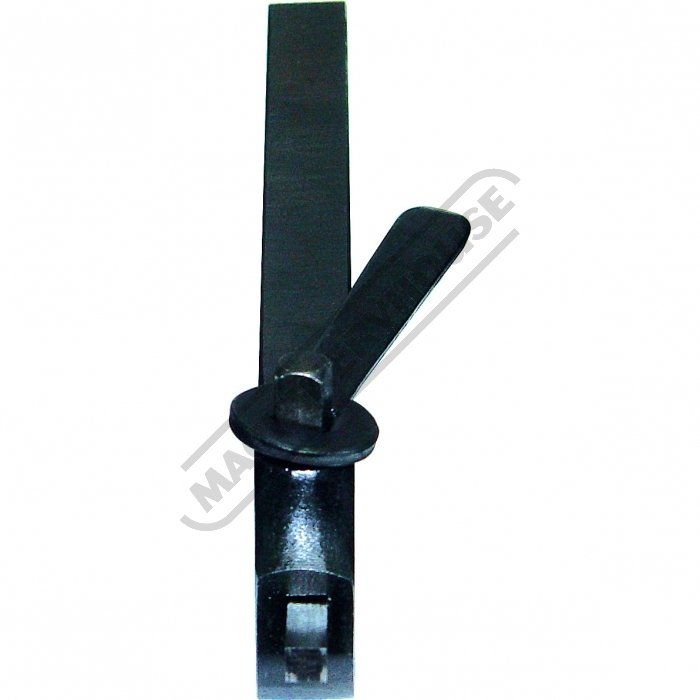

Top Front View
5 of 5
Discontinued
Order Code: L075S
Description
Straight Lathe Turning Tool Holder - English Style
16 x 19mm
HSS bit not included

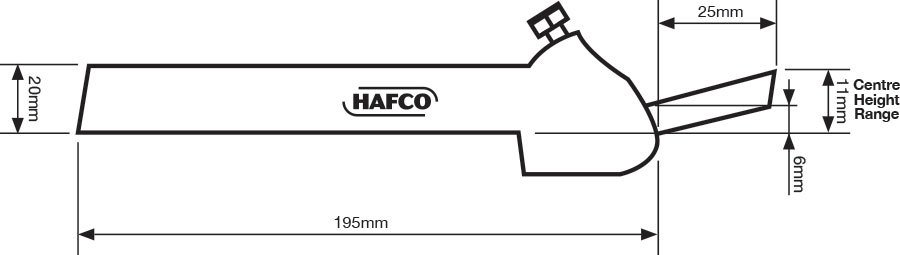

Overview
Straight Hand TURNING TOOL HOLDER
For HSS Tool Bits
English Style - to suit 1/4" Tool Steel (Drop Head)
NOTE: HSS Tool bits not supplied
Uses Tool Bit L0003
For HSS Tool Bits
English Style - to suit 1/4" Tool Steel (Drop Head)
NOTE: HSS Tool bits not supplied
Uses Tool Bit L0003
Features
- Manufactured from high grade steel
- Case-hardened and ground
- Supplied with wrench, but without tool bit
- Available in straight (S), right (R) and left (L) hand shanks
Compare Product Range
Specifications
| ORDER CODE | L075S |
|---|---|
| Hand Type | Straight |
| Style | English (Drop Head) |
| (mm)Centre Height Min. - Max. | 6 - 11 |
| (inch / mm)Shank Size (W x H) | 5/8 x 3/4" / 16 x 19 |
| (inch / mm)Overall Length | 7 1/2" / 190 |
| ( inch / mm)Tool Bit Capacity | 1/4" / 6.3 |
| (kg)Nett Weight | 0.80 |
On Sale
On Sale
On Sale
On Sale
Discontinued
Discontinued
On Sale
On Sale
On Sale
On Sale
On Sale
On Sale
On Sale
On Sale
On Sale
- Compare:
- Wishlist:
- ORDER CODE
- Hand Type
- Style
- (mm)Centre Height Min. - Max.
- (inch / mm)Shank Size (W x H)
- (inch / mm)Overall Length
- ( inch / mm)Tool Bit Capacity
- (kg)Nett Weight
- (ex-gst)Pricing
- (inc-gst)
- On Sale
-
Compare
-
Wishlist
- L070L
- Left
- American
- 10 - 23
- - / 9.5 x 22
- - / 127
- 1/4" / 6.3
- 0.34
- $30.43
- $35.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- L070R
- Right
- American
- 10 - 23
- - / 9.5 x 22
- - / 127
- 1/4" / 6.3
- 0.34
- $30.43
- $35.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- L070S
- Straight
- American
- 10 - 23
- - / 9.5 x 22
- - / 127
- 1/4" / 6.3
- 0.36
- $30.43
- $35.00
- ADD TO CART
