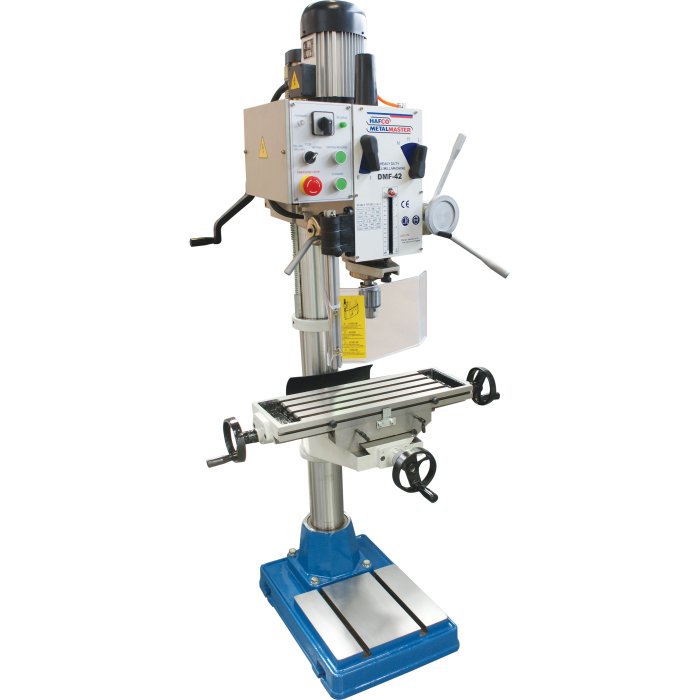

HAFCO METALMASTERDMF-42
Mill Drill - Pedestal Geared & Tilting Head
  • 1 of 17
    DMF-42
  • 2 of 17

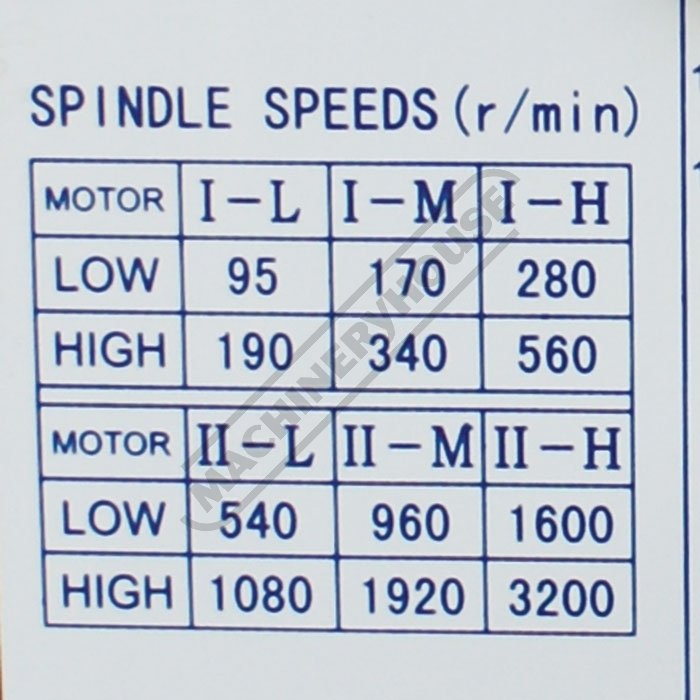

    12 Drilling Speeds from 95 3200rpm
  • 3 of 17
    Gear Selection Levers
  • 4 of 17

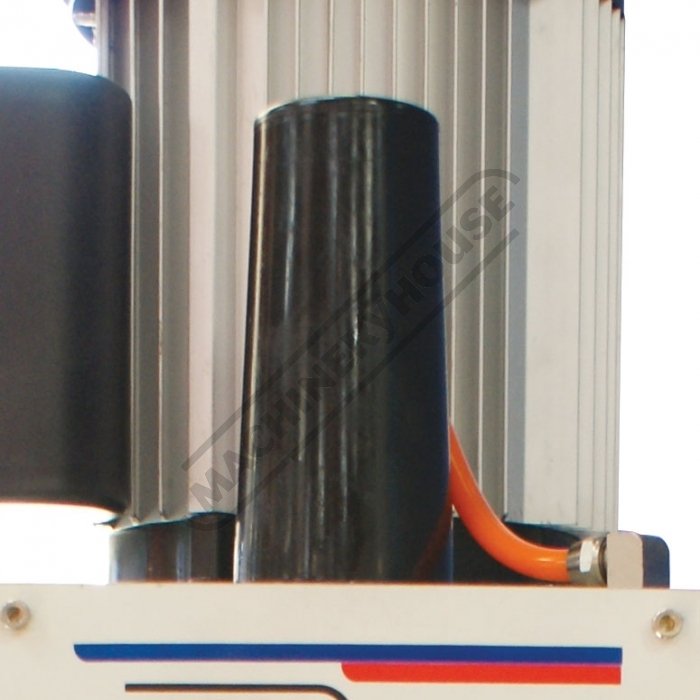

    Drawbar for Milling
  • 5 of 17

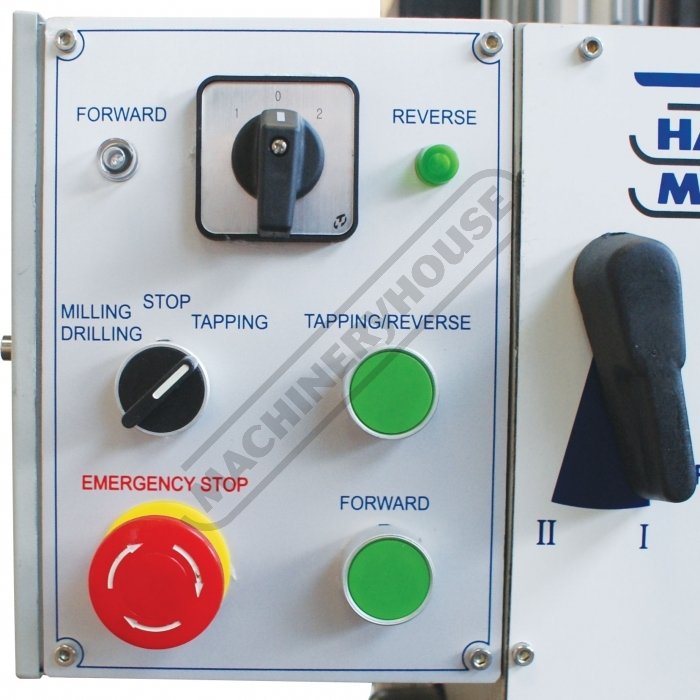

    Emergency Stop Switch and Overload Protection and Tapping Function
  • 6 of 17

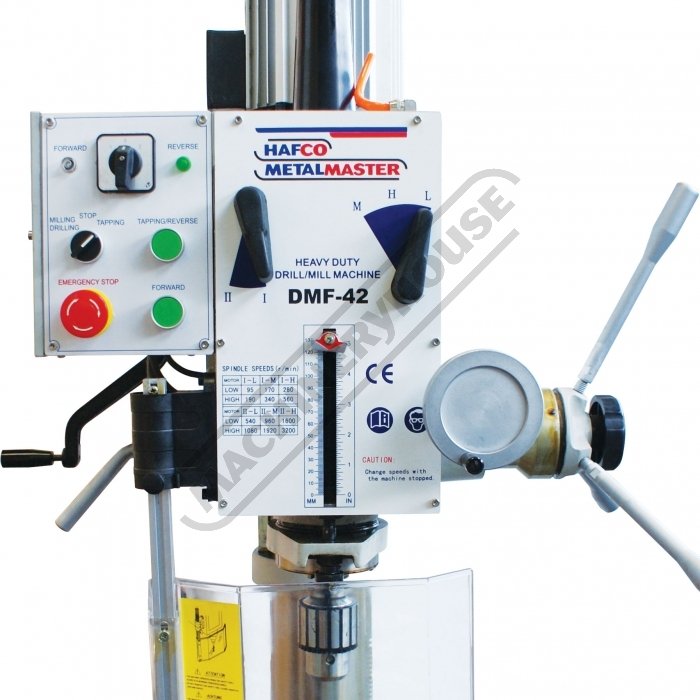

    Front Controls
  • 7 of 17

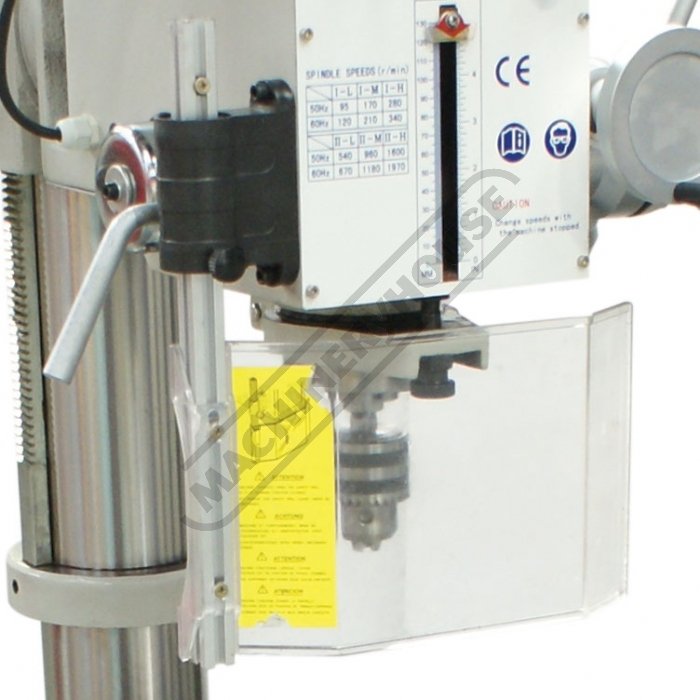

    Swivel Safety Drilling Chuck Guard
  • 8 of 17
    Adjustable Accurate Depth Setting For Increased Productivity
  • 9 of 17

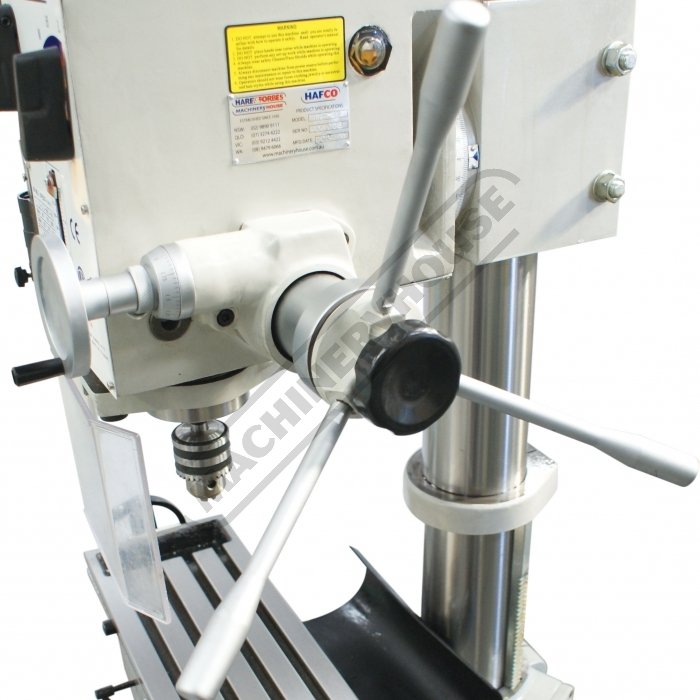

    Quill Handle
  • 10 of 17

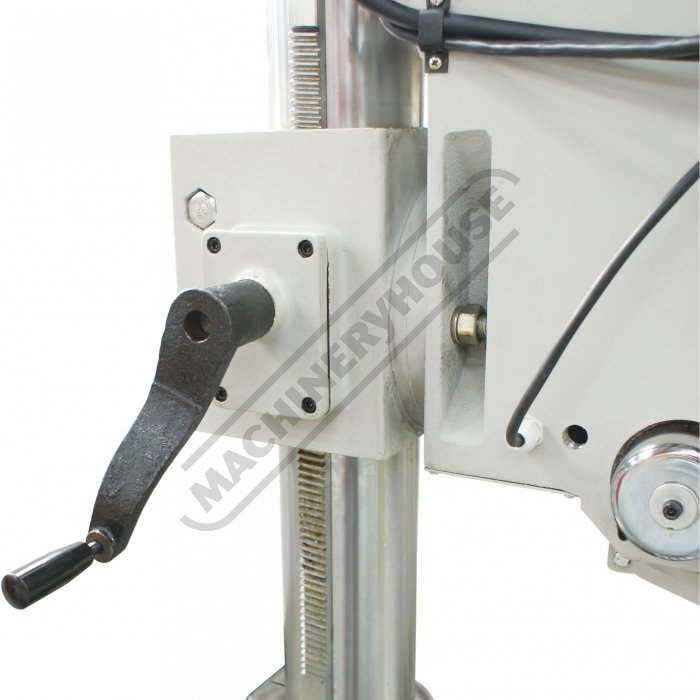

    Rack and Pinion Wind Up Drill Head
  • 11 of 17

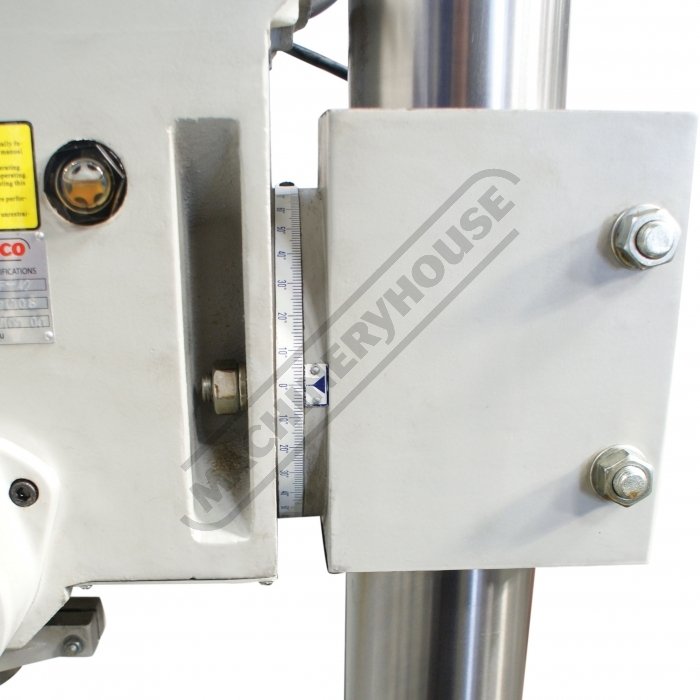

    Swivel Head
  • 12 of 17
    Table Cross Travel Handle
  • 13 of 17

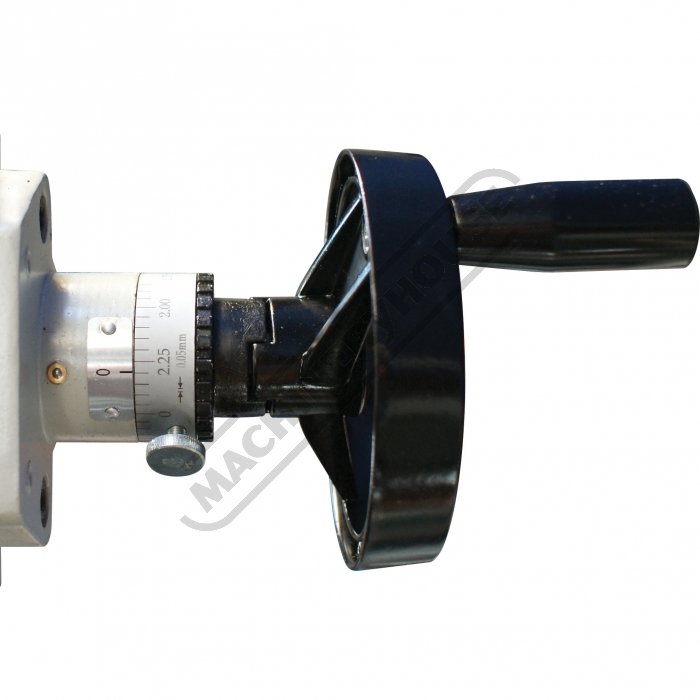

    Table Longitudinal Travel Handle
  • 14 of 17
    T Slotted Base
  • 15 of 17

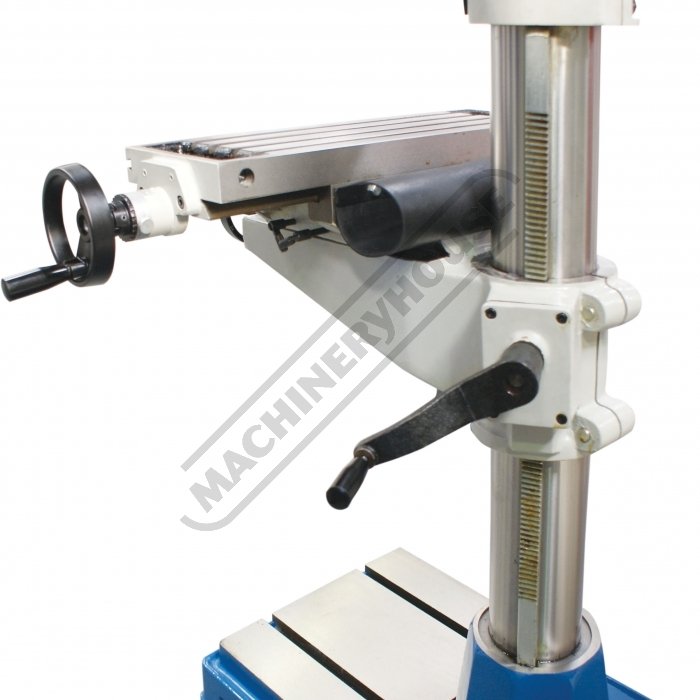

    Rack and Pinion Wind Up Table
  • 16 of 17

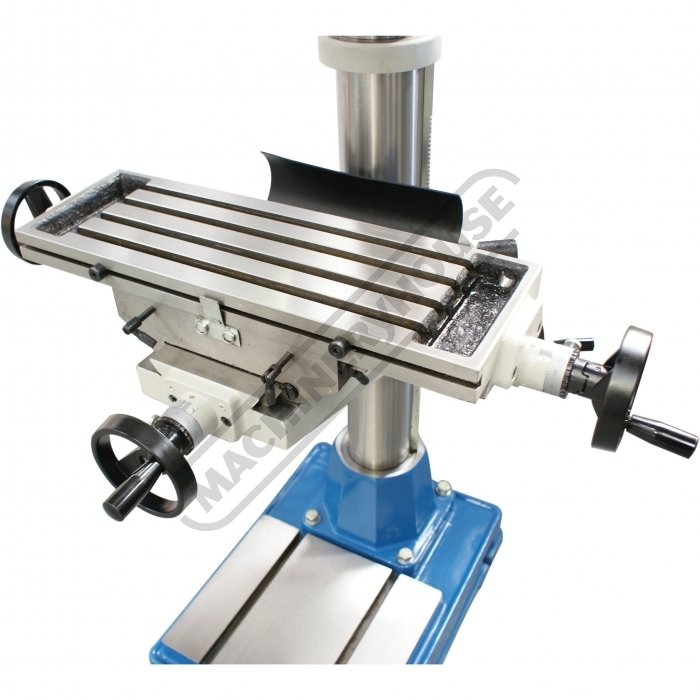

    T Slotted Work Table
  • 17 of 17

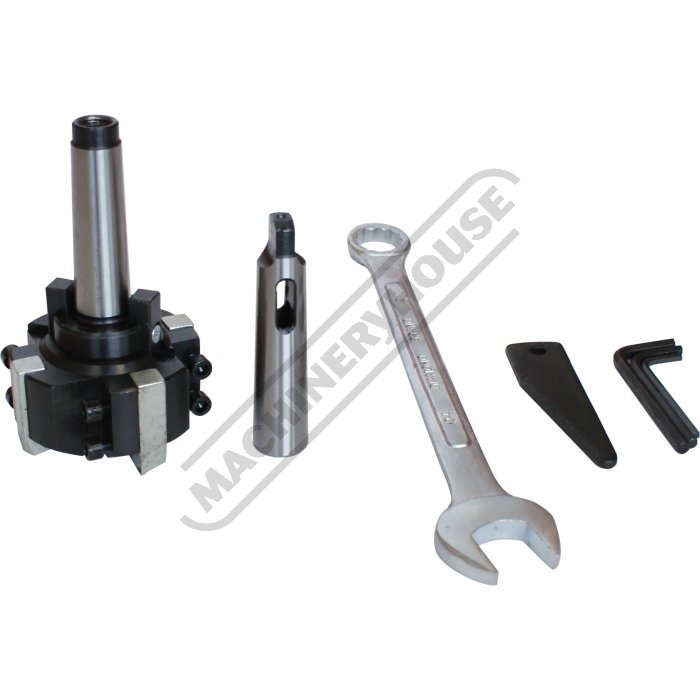

    Included Parts
DMF-42
Mill Drill - Pedestal Geared & Tilting Head (415V)
(X) 370mm (Y) 200mm (Z) 780mm
HAFCO METALMASTER
ex GST
inc GST
$2,850.00
$3,277.50

CODE
D181
Model
DMF-42
Digital Readout
Optional
Column Type
Ø115mm
Table Size
585 x 190mm
Spindle Taper
3MT
Longitudinal Travel (X-axis)
370mm
Cross Travel (Y-axis)
200mm
Vertical Travel (Z-axis)
780mm
Spindle to Table
780mm
Spindle Travel
120mm
Spindle to Column
250mm
Swivel Head (Left - Right)
±90º
Drilling Capacity
31.5mm
End Milling Capacity
28mm
Face Milling Capacity
80mm
T-Slot
14mm
Work Table Capacity
55kg
Spindle Speed (steps / rpm)
12(95-3200rpm)
Motor Power
1.1kW / 1.5hp
Motor Voltage
415V
Overall Height
2000mm
Weight (Nett)
350kg
Features
  • Ideal for home or light industrial workshop use
  • Geared head drill & mill machine with 3 morse taper spindle
  • 12 drilling speeds from 95-3200rpm
  • 1.1kW 415V motor
  • Tapping function
  • Micro down feed adjustment
  • Tilting head ±90º
  • Milling table travels 370 x 200mm
  • Swivel safety drilling chuck guard
  • Emergency stop switch and overload protection
  • Adjustable accurate depth setting for increased productivity
  • Rack and pinion wind-up table
  • Rack and pinion wind-up drill head
  • Thick walled column ensuring greater rigidity
  • Concertina slide way cover on y axis
  • Adjustable gibs on table
  • 14mm T slotted work table and base
  • Includes drawbar for milling
Includes
  • Milling cutter
  • 16mm keyed drill chuck and arbor
  • Chuck key to suit
  • Drill drift tool to remove drill chuck or taper shank drills
  • Safety cutter guard
